Product Introduction
JTD’s rubber screens are resistant to abrasion and can process hard materials, such as ores, granite, crushed stones, gravel and coal. Because of this, our rubber screens can be used with heavy-duty screening machines in industries like mining, metallurgy, coking, building materials and coal preparation.
Features
Highly elastic, long service life;
Our rubber screens are resistant to abrasion, impact, tear strength and water;
The rubber screens are built on sheet metals and special rubbers;
Shock-absorption, noise-reduction;
Easily manufactured;
Optional thickness: 7 mm, 10 mm, 15 mm, 20 mm, 25 mm, 30 mm;
Aperture shapes: square, round, rectangle;
Aperture sizes: 5 mm – 125 mm;

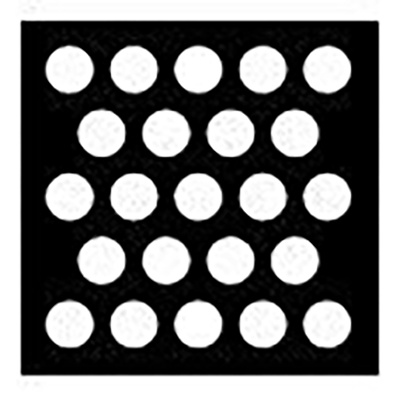

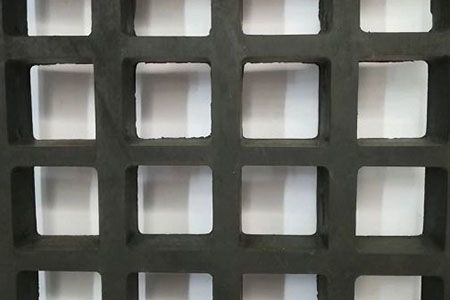

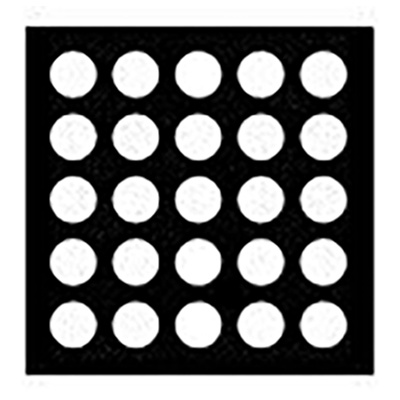

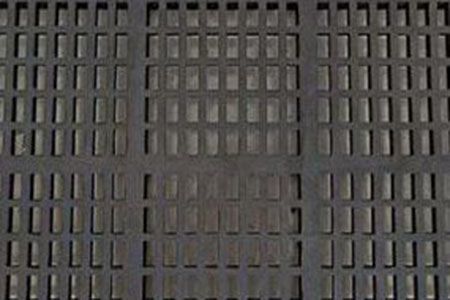

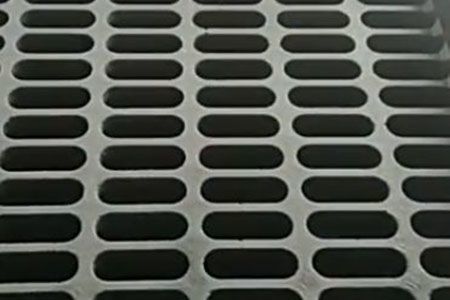

Aperture Shapes

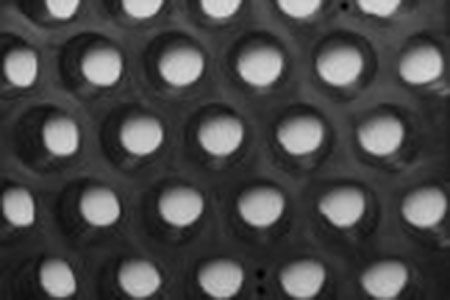

Specifications of Round-Aperture Screens
Aperture Width Opening Area Particles (mm) Thickness According to Loading Capacity Unbroken broken Light Normal Heavy Very Heavy 13.00 30.1% 12 11 8 10 12 15 17.00 36.3% 14 13 10 15 18.00 30.2% 15 14 10 15 22.00 29.3% 18 17 12 15 30.00 32.0% 25 22 15 20 25 35.00 34.2% 30 27 15 20 25 40.00 37.3% 34 31 20 25 30 42.00 37.2% 36 34 25 30 35 50.00 37.9% 41 38 25 30 35 60.00 39.1% 50 46 25 30 35 63.00 39.3% 52 48 25 30 35 65.00 40.1% 55 50 25 30 35 70.00 38.5% 59 54 25 30 35 75.00 38.6% 63 58 25 30 35 80.00 41.5% 68 63 25 30 35 40 90.00 42.0% 75 68 25 30 35 40 Specifications of Rectangle-Aperture Screens

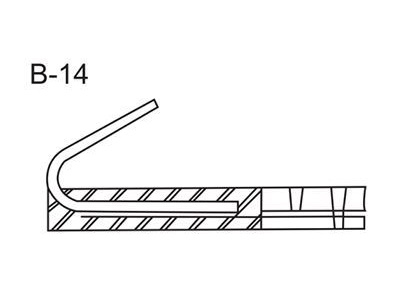

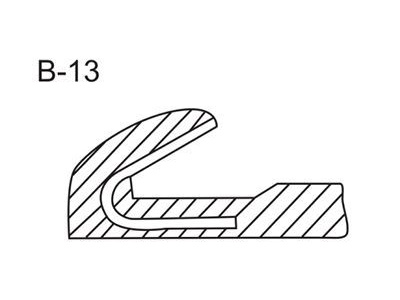

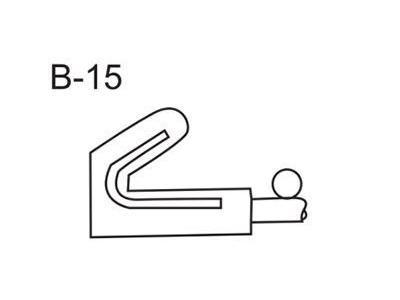

Aperture Width Opening Area Particles (mm) Thickness According to Loading Capacity Unbroken broken Unbroken broken 2,00 x 20,00 30.0% 2 2 4 2,00 x 24,00 30.0% 2 2 4 2,00 x 28,00 32.0% 2 2 4 3,75 x 28,00 35.0% 3.5 3.5 4 4,00 x 28,00 36.0% 4 4 4 5 5,00 x 28,00 40.0% 5 5 4 5 6,00 x 28,00 41.0% 6 6 4 5 6,90 x 28,00 43.0% 6.5 6.5 4 5 25,00 x 80,00 44.5% 22 22 20 25 30 25,00 x 120,00 46.0% 22 22 20 25 30 28,00 x 80,00 45.0% 25 25 20 25 30 30,00 x 100,00 48.0% 28 28 20 25 30 30,00 x 120,00 49.0% 28 28 20 25 30 35,00 x 70,00 48.50% 30 30 Hook Style
