Product Introduction

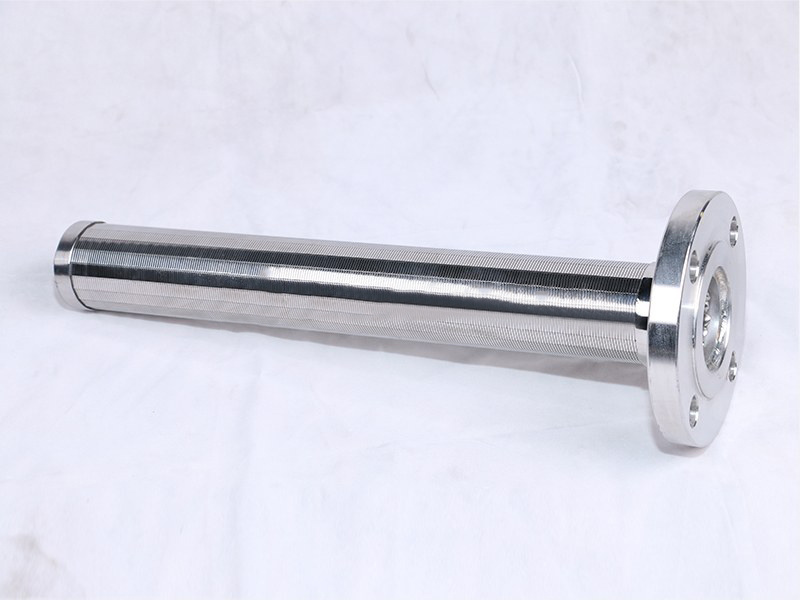

Resin trap also named resin catcher, media trap, it is a set of fittings consisting of pipe housing and resin trap screen. Resin trap wedge wire screen is providing security in case of catastrophic failure of your media beds. Generally, resin trap screen is flanged at the bottom of sand filter tank or mixed bed, and protected by mostly stainless steel housing or plastic housing.
When the resin or media passes by, it can be intercepted and captured by the wedge wire filter screens. At the same time, the captured resin or media can be discharged out of the system by flushing automatically through the differential pressure between front and rear installed near the outlet of the water system line.
And, wedge wire screen resin trap screen also be considered in the backwash lines of most ion exchange and carbon systems because temperature related flow changes can cause these expensive materials to be sent down the drain.
Our Resin traps screen is produced by fine raw material and advanced welding process. The gap size can be designed according to resin size.
Technical Information and Specifications
Technical Information and Specifications of Wedge Wire Screens for Resin Traps Material Grade 304, 316, 316L,321,410S, 904L, HASTELLOY C-276
DUPLEX 2205, SUPER DUPLEX 2507, otder metal alloy materialsScreen Outside Diameter 1" – 20", customized Screen Slots size 0.001" – 0.625" , customized Wedge Wire (mm) 0.5 × 1.5 0.75 × 1.5 1 × 2 1.5 × 2 2 × 3 2 × 4 Support Rod (mm) 1.5 × 2.5 or 2 × 3 1.5 × 2.5 or 2 × 3 1.5 × 2.5 or 2 × 3 1.8 × 2.5 or 2 × 3 3 × 5 3 × 5 Connection Type Flange (RF/SO/ANSI/Custom), Threaded end or otders End Type Blind plate Surface Treatment Passivation, pickling, stress relieving, polishing, chrome plating

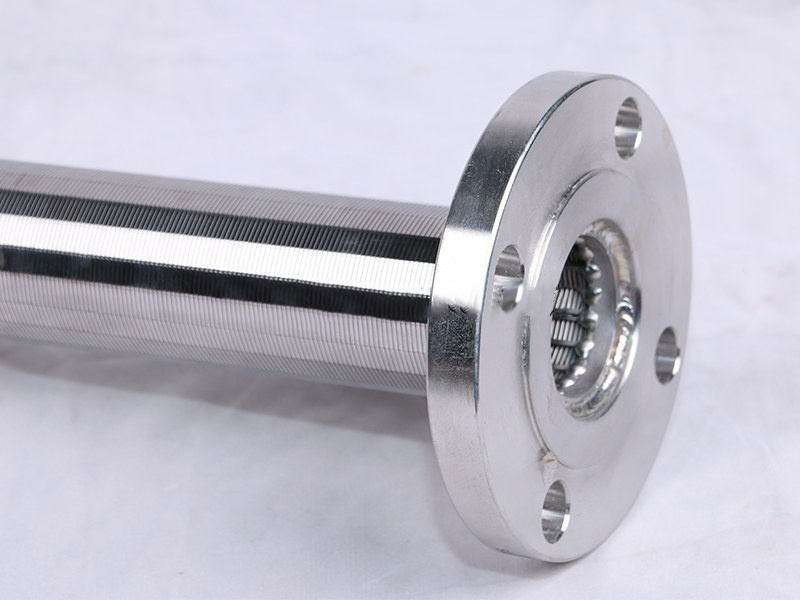

Flange

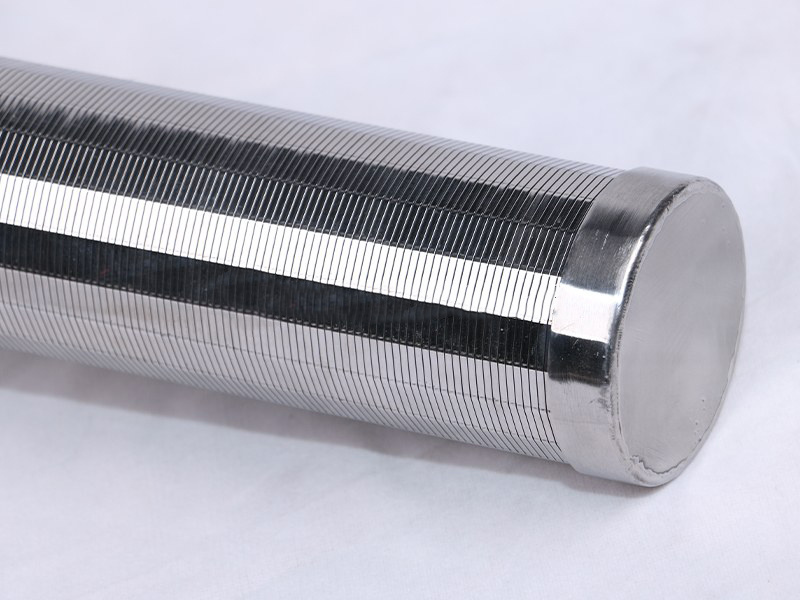

Blind cap
Feature and Advantages
● Resin traps screen by design are placed in a housing utilizing the flow to capture media and preventing it from traveling downstream.
● Continuous & uniform slot design, high open area, non-clogging high filtering efficiency
● V-shaped surface wires allow for easy cleaning by backflushing
● Economical due to Corrosion and rust resistance long life, and easy to install and replacement.
● Minimal pressure drop
● Strong and durable
● Top customs
Applications
Our complete range of resin trap screen or media traps screen suit a wide range of applications, it is installed in the product water line of most resin and media based water treatment equipment like Softeners, Dealkalizers, Condensate Polishers, Demineralizers, Carbon Filters, Sand Filters, Portable DI Tanks, Greensand Filters, and/or Multi-Media Filters.
Cases Display
Through client cases, you can learn our excellent product quality and process in-depth, and feel the quality of pressure screen drum.
Quality Control
JTD is committed to delivering wedge wire resin trap screen of superior quality. Our stringent quality control process ensures that you receive a reliable product that meets the highest standards.
