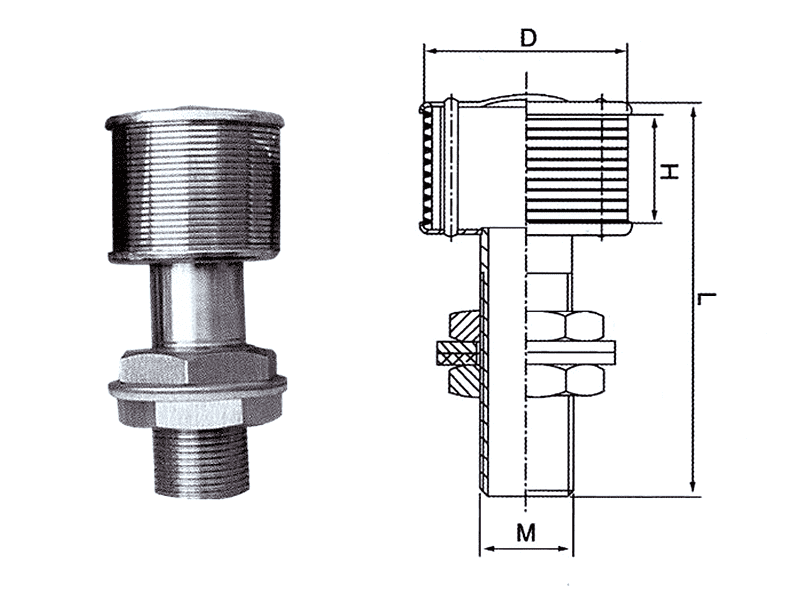

Single Head Wedge Wire Filter Nozzle
Filter Nozzle
Our wedge wire screen filtering nozzles made by stainless steel 304, 316, 316L, 321, 904L, 2205, 2507, C276 or other metal alloy material
If you need customized wire mesh products, Contact US !
Products Category
Tag list
- 产品描述
-
Product Introduction
Our wedge wire screen filtering nozzles made by stainless steel 304, 316, 316L, 321, 904L, 2205, 2507, C276 or other metal alloy material, V-shaped wire around the plate water cap for chemical industry, which owns fine features:
● Continuous & uniform slot design, high open area.
● Non-clogging high filtering efficiency.
● Economical due to Corrosion and rust resistance long life, and Easy to install and replacement.
● High temperature resistance.
It has a wide range of applications in water treatment applications. JTD is making and supplying the different wedge wire sizes and slot sizes can suit different class filtration.
Type and Specifications
According to the appearance, there are mainly four types of metal wedge wire nozzle, Single Head wedge wire Filter nozzle, Double Head wedge wire Filter nozzle, Single Flow rating and double flow rating filter nozzle, long handle filter nozzle.

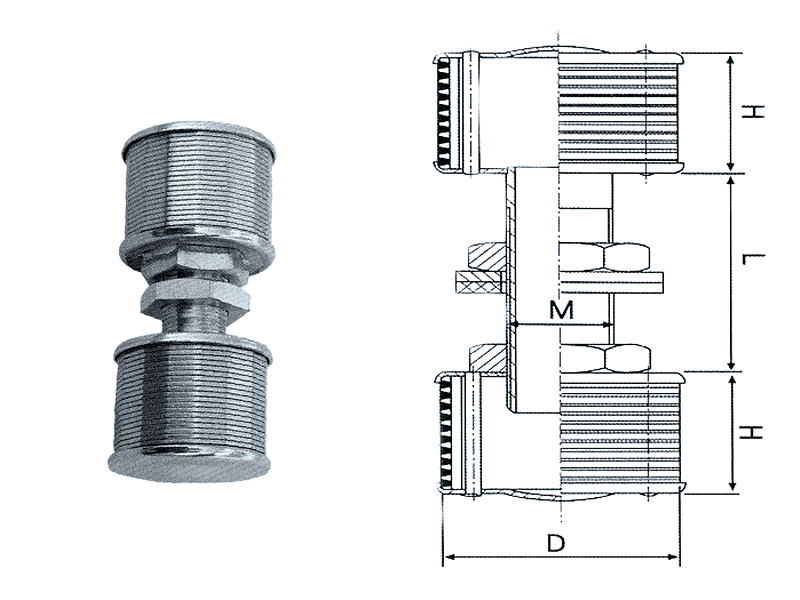

Double Head Wedge Wire Filter Nozzle

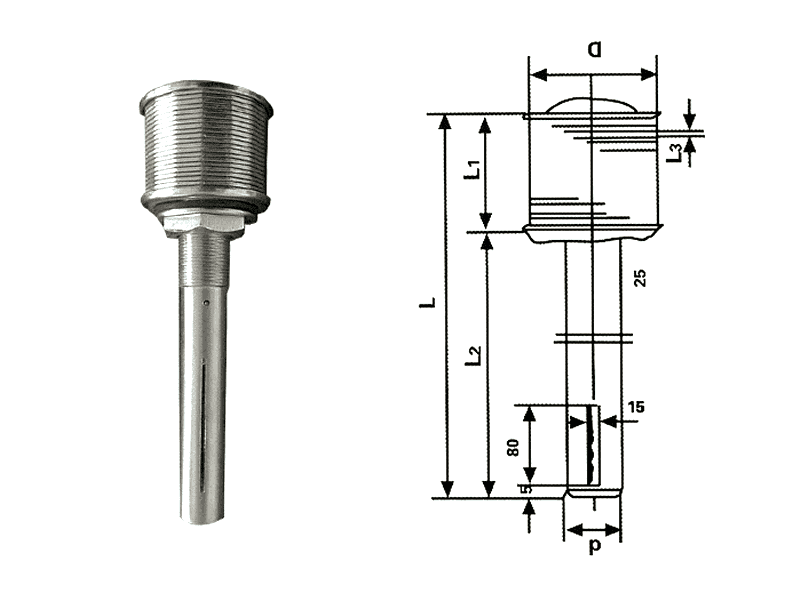

Long Handle Wedge Wire Filter Nozzle

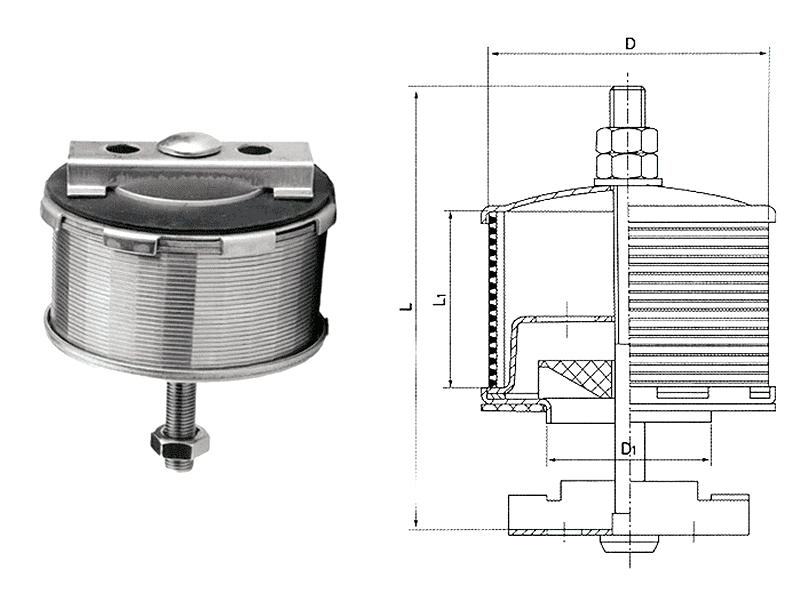

Flat Plate Flow Rating Filter Nozzle
Table 1: Specification of Single Head Wedge Wire Nozzle Item Model Slot (mm) Outline Dimension (mm) Filtration area (mm2), slot 0.2mm Material D H L M 1 SN45-1-A 0.2-0.5 45 25 75 M20 280 304, 321, 316, 316L,904L, C-276
2 SN45-1-B 0.2-0.5 45 35 85 M20 390 3 SN45-1-C 0.2-0.5 45 45 95 M24 500 4 SN53-2-A 0.2-0.5 53 45 95 M24 450 5 SN53-2-B 0.2-0.5 53 45 95 M32 450 6 SN53-2-C 0.2-0.5 53 55 110 M32 550 7 SN57-3-A 0.2-0.5 57 35 85 M32 520 8 SN57-3-B 0.2-0.5 57 45 95 M32 660 9 SN57-3-C 0.2-0.5 57 55 110 M32 530 10 SN70-4-A 0.2-0.5 70 45 95 M32 530 11 SN70-4-B 0.2-0.5 70 70 120 M32 1000 12 SN82-A 0.2-0.5 82 60 120 G11/M42 / Notes:
1. The water wedge wire nozzle is equipped with a rubber gasket, a steel gasket and a stainless steel nut of the same material.
2. specifications not listed in the chart, processing production according to user requirements.
3. M, NPT, G, PT, Z, thread are available.Table 2: Specification of Double Head Wedge Wire Nozzle Item Model Slot (mm) Outline Dimension (mm) Filtration area (mm2), slot 0.2mm Material D H L M 1 DN45-5-A 0.2-0.5 45 35 according to order M25 330 304, 321, 316, 316L,904L, C-276 2 DN45-5-B 0.2-0.5 45 45 M25 400 3 DN53-6-A 0.2-0.5 53 35 M25 400 4 DN53-6-B 0.2-0.5 53 45 M32 680 5 D57-7-A 0.2-0.5 57 40 M32 530 6 D57-7-B 0.2-0.5 57 50 M32 700 Notes:
1. L is determined by the thickness of the perforated plate and the lining glue provided by the user
2. The water wedge wire nozzle is equipped with a rubber gasket, a steel gasket and a stainless steel nut of the same material.
3. specifications not listed in the chart, processing production according to user requirements.
4. M, NPT, G, PT, Z, thread are available.Table 3: Specification of Long Hand Wedge Wire Nozzle Item Model Slot (mm) Outline Dimension (mm) Filtration area (mm2), slot 0.2mm Material D H L M L1 1 LN45-11-A 0.2-0.5 45 35 35 M20 according to order 330 304, 321, 316, 316L,904L, C-276 2 LN45-11-B 0.2-0.5 45 45 40 M24 400 3 LN53-12-A 0.2-0.5 53 35 45 M24 510 4 LN53-12-B 0.2-0.5 53 45 50 M32 640 5 LN57-13-A 0.2-0.5 57 40 45 M32 630 6 LN57-13-B 0.2-0.5 57 50 50 M32 780 Notes:
1. L is determined by the thickness of the perforated plate and the lining glue provided by the user
2. The water wedge wire nozzle is equipped with a rubber gasket, a steel gasket and a stainless steel nut of the same material.
3. specifications not listed in the chart, processing production according to user requirements.
4. M, NPT, G, PT, Z, thread are available.Table 4: Specification Of Plate Type Flowing Wedge Wire Nozzle Item Model Slot (mm) Outline Dimension (mm) Filtration area (mm2), slot 0.2mm Material D L1 D1 L 1 QSPN82-18-A 0.25/0.4 82 50 50 130 1300 304, 321, 316, 316L,904L, C-276 2 QSPN82-18-B 0.25/1.0 82 50 50 130 1300 Notes: single flow rate and double flow rate Nozzle have the same external structure.
A=Double Flow Rate B=Single Flow RateAdvantage
1. It has Continuous & Uniform Slot Design, that prevents the loss of ion exchange resin, activated carbon media, filter media, greensand media, sand and other media. And this safety precaution will not diminish flow.
2.Not only is this essential to prevent the loss of expensive material, but it's also Critical To Avoid Damaging Downstream Equipment
3.The average filtration accuracy is 5-80μm, and the filtration Efficiency Is High With Large Flow Rate
4.The Structure Is Strong And Durable, the service life is long, and the frequency of replacement is lower than that of plastic water filter nozzles.
5.High Opening Rate, can be produced according to customer demand
6.Diversified Structure to meet different design requirements

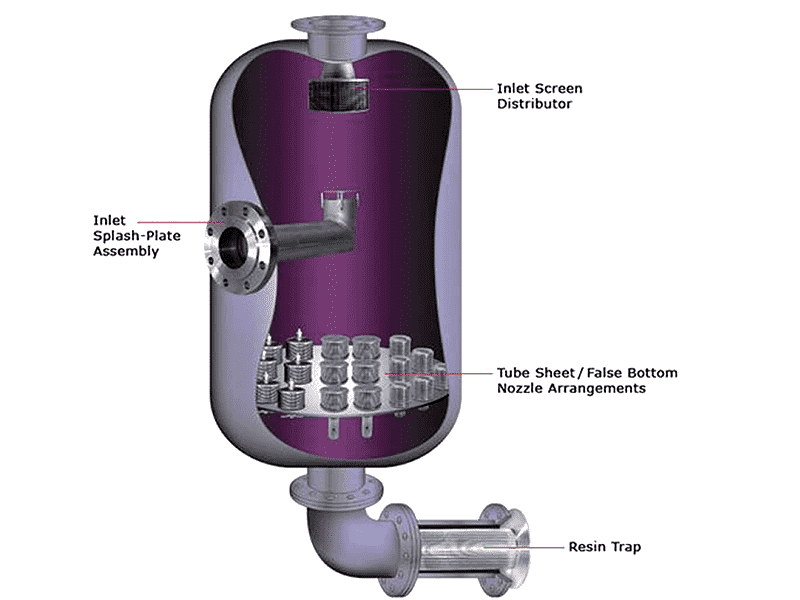

Applications
Nozzles are used in liquid/solid or gas/solid separation. We can make wide variety of materials and sizes to suit your application needs.

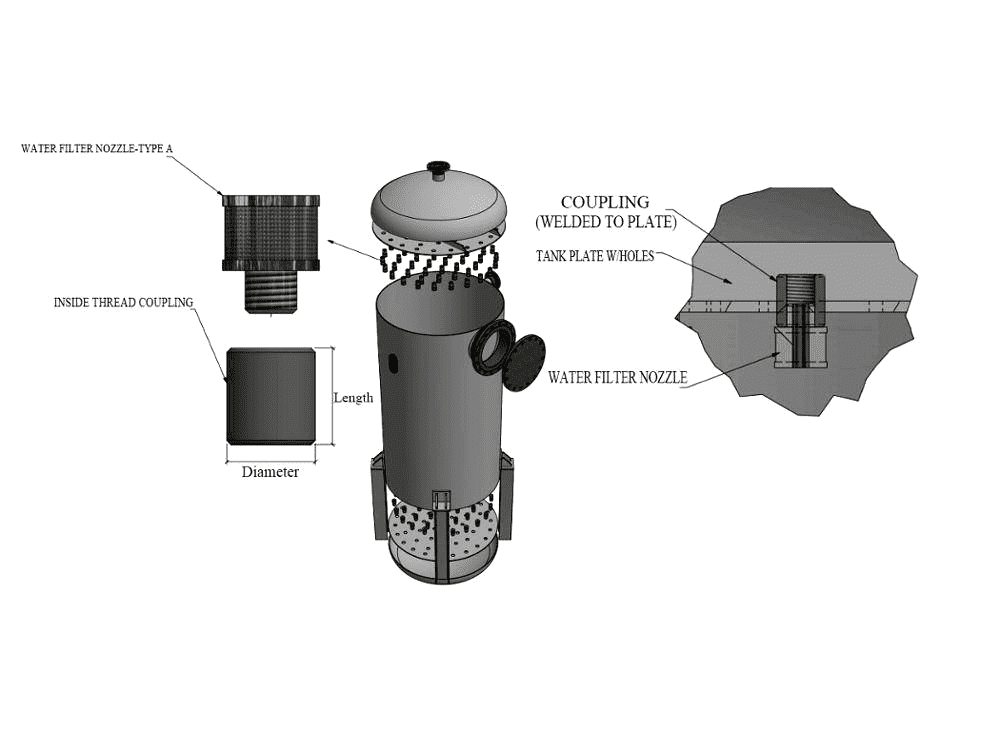

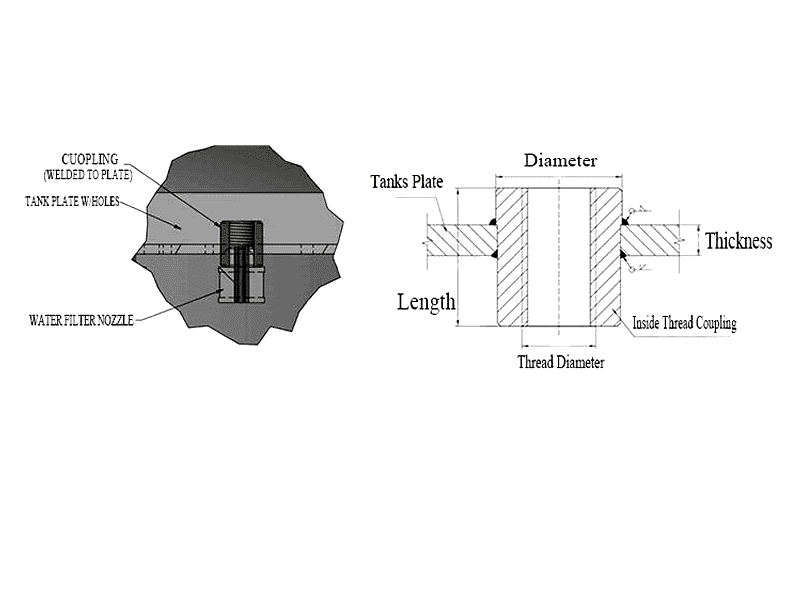

● As Collectors and distributors installed uniformly across a plate or a header lateral arrangement.
● De-mineralizers, water softeners and in pressure and gravity sand filters.
● Wedge wire water filter nozzles is widely used in power plant, petroleum, chemical, food and other industries of water treatment equipment field.
