Wedge Wire Grates Owns Smooth Surface Comfortable For Touching
Wedge Wire Grates
Stainless steel wedge wire grates is a popular new drainage and floor gratings.
If you need customized wire mesh products, Contact US !
Products Category
Tag list
- 产品描述
-
Product Introduction
Stainless steel wedge wire grates is a popular new drainage and floor gratings, we uses flat bars or cross rods welded directly to the profile wires, through specially developed machinery and advanced automatic TIG welding technology, ensuring smooth, level and bright surface.
Comparing with common steel bar grating, stainless steel wedge wire grate have high drainage properties, in addition it is strong and durable, easy to clean and also aesthetically pleasing.
Our grates offer a wide range of apertures varied from 2 mm to 10 mm. We aim at making Top-quality High-grade Drainage and floor gratings for multiple applications fields.
Specifications
● Material. Stainless steel V shaped wires and flat bars
● Panel Widths. Can be 80 mm – 1000 mm
● Panel Length. 80 mm – 1500 mm
● Mesh Aperture. Commonly 5.5 mm, varied from 2 mm to 10 mm
● Cross Flat Bars Distance. 50 mm or according to order
● Outer Frame Depth. From 12 mm to 50 mm. Some going into standard drainage channels and others going into frames and therefore having to be specially made.

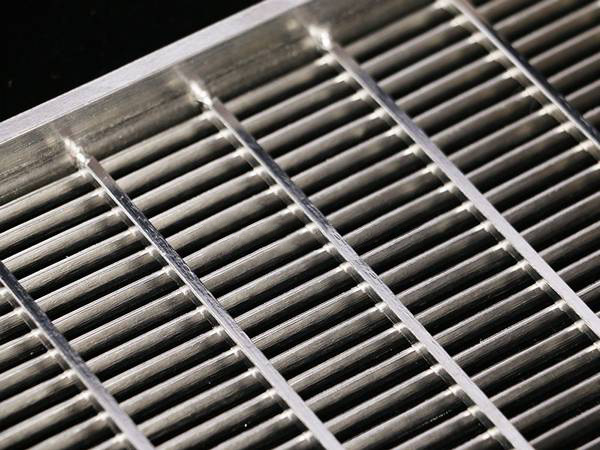

Wedge Wire Grates Has Small Gaps Safe For Hells

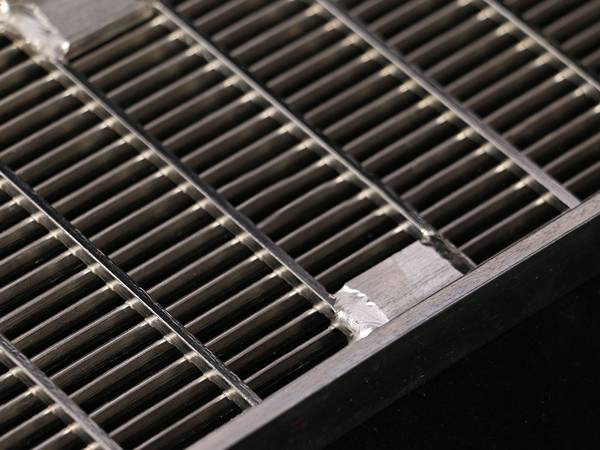

Wedge Wire Grates is Fine Welding Quality Long Life
Benefits of wedge wire grates
● "Self-cleaning" function, not only not easy to block
● Long life, corrosion resistance and rust resistance
● Small gaps, very safe for hells
● The smooth surface is comfortable
● Unique aesthetically pleasing
Applications Fields
Wedge wire grates is perfect solution for high quality surface drainage in schools and other commercial situations. Strong and versatile stainless steel wedge wire grates is widely used for following fields:
● Gyms and swimming pools
● Drainage grates, channels and also gullies
● Walkways and stair treads
● Foot wash stations
● Roof and balcony drains
● Decorative purposes for facade
● Bathrooms and wet rooms
● Marine drainage
● Changing rooms● Showers flooring
● Kitchens flooring

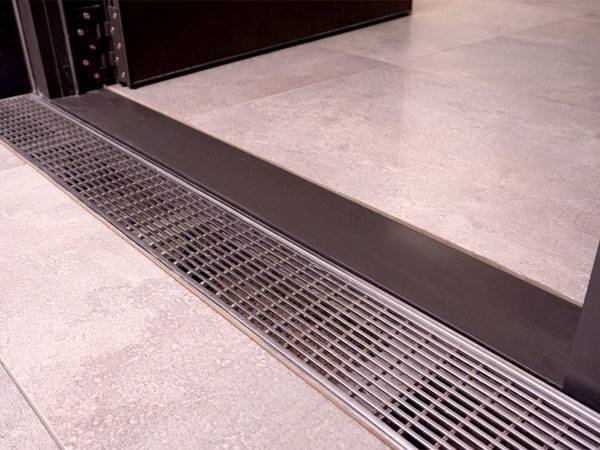

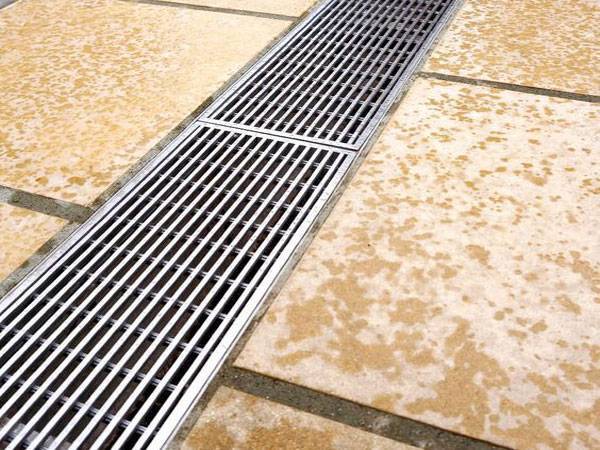

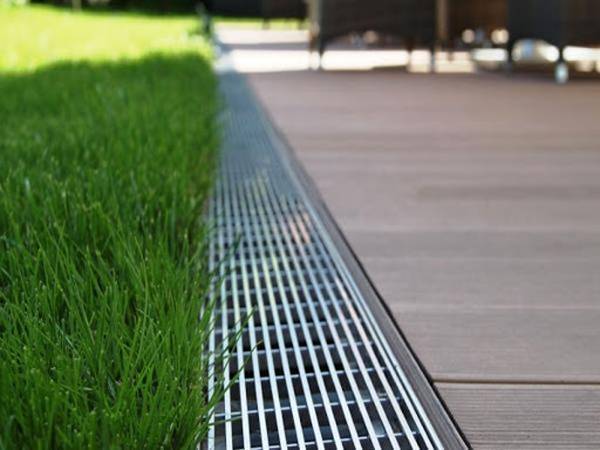

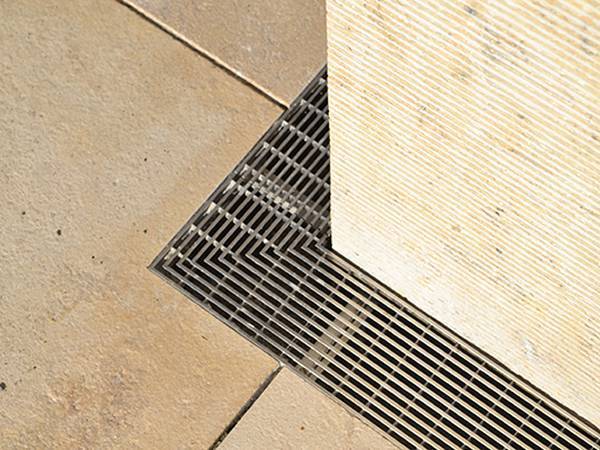

Cases Display
Through client cases, you can learn our excellent product quality and process in-depth, and feel the quality of pressure screen drum.
Quality Control
JTD is committed to delivering stainless steel wedge wire grates of superior quality. Our stringent quality control process ensures that you receive a reliable product that meets the highest standards.
