Product Introduction

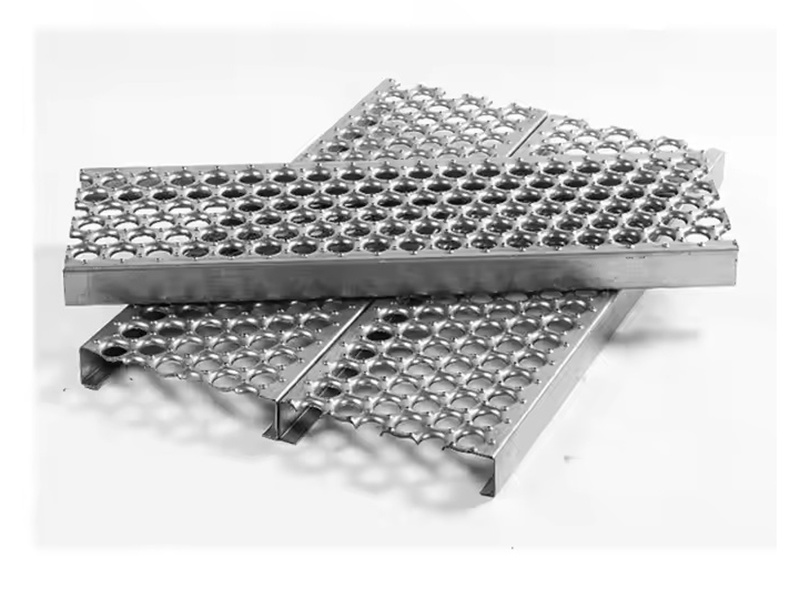

Perf-O grip plank safety grating is formed by a cold forming process which produces debossed holes and perforated buttons, that provide maximum slip protection and performance under practically all conditions and in every direction. These holes also allow fluids, mud, chips and other potential accident-causing debris to drain away. So that, it is used to create non-slip commercial and industrial metal floor grating for walkways, stairways, stair treads, and steel flooring, can be used in a variety of environments, for many different applications. Various material, widths, gauges, finishes, depth and lengths are available.
Technical Data
● Material Grade:
Stainless Steel
Hot Rolled Pickled and Oiled (HRPO) carbon steel
Aluminum Alloy 5052 (support anodizing)
Pre-galvanized Steel (support surface painting)
● Slip resistance: complies with federal specification RR-G-1602D standards.
● Available Patterns: Perf-O Grip Plank Grating, Perf-O Grip Walkway, Perf-O Grip Stair Tread

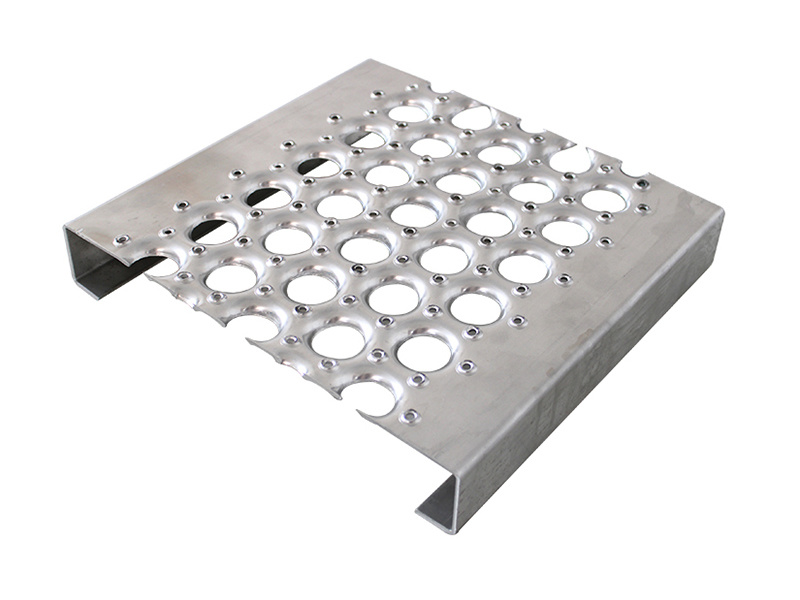

Perf-O Grip Plank Grating
● Material Gauge: 9 ga, 10 ga, 11 ga, 12 ga, and 13 ga
● Width: 5" (2-hole), 7" (3-hole), 10" (5-hole), 12" (6-hole), 18" (10-hole), 24" (13-hole), 30" (16-hole)
● Channel Depth: 1-1/2", 2", 2-1/2, 3" or customized
● Channel Span Length: 6', 8', 10', 12', 2’, or customized
Perf-O Grip Walkway Plank Safety Grating
● Material Gauge: 9 ga,10 ga
● Walkway Width: 24” (13-hole), 30” (16-hole), 36” (19-Diamond)
● Walkway Depth: 5"
● Walkway Span Length: 6', 8', 10', 12', 24' or customized

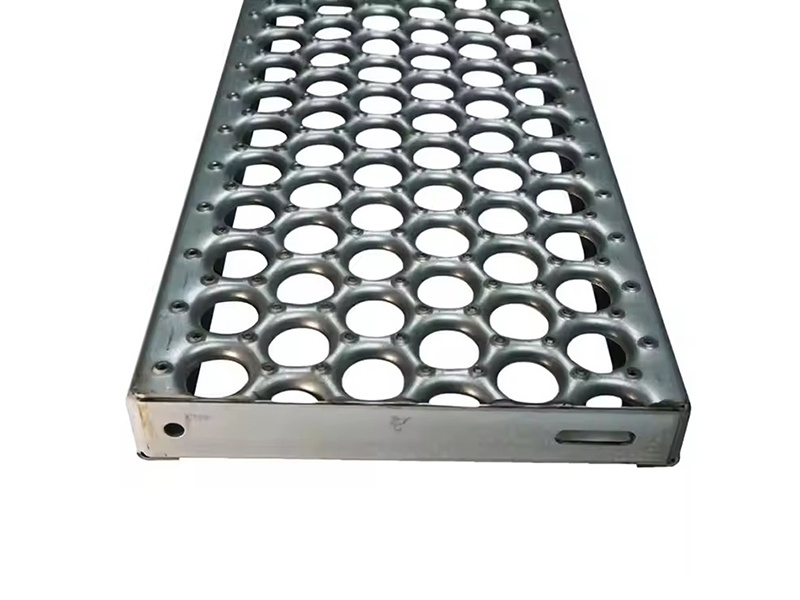

Perf-O Grip Stair Tread Plank Safety Grating
● Material Gauge: 10 ga, 12 ga, and 13 ga.
● Width: 5" (2-hole), 7" (3-hole), 10" (5-hole), 12" (6-hole)
● Depth: 1-1/2", 2".
● Span Length: 2', 2.5', 3', 4' or customized
● Intermediate stringer: it is recommended for spans over 4 feet.
● End types: bending 4 sides or welding carrier plates on ends.
Application
Perf-O grip safety gratings are widely used for underfoot security in gas based power plants, shipbuilding, boiler, automobile, tractor, railway carriage, architecture, large buildings, bridges, mining and construction industries.
● Ramps.
● Catwalks.
● Walkway.
● Step treads.
● Ladder rungs.
● Running boards.
● Work platforms.
● Industrial flooring
