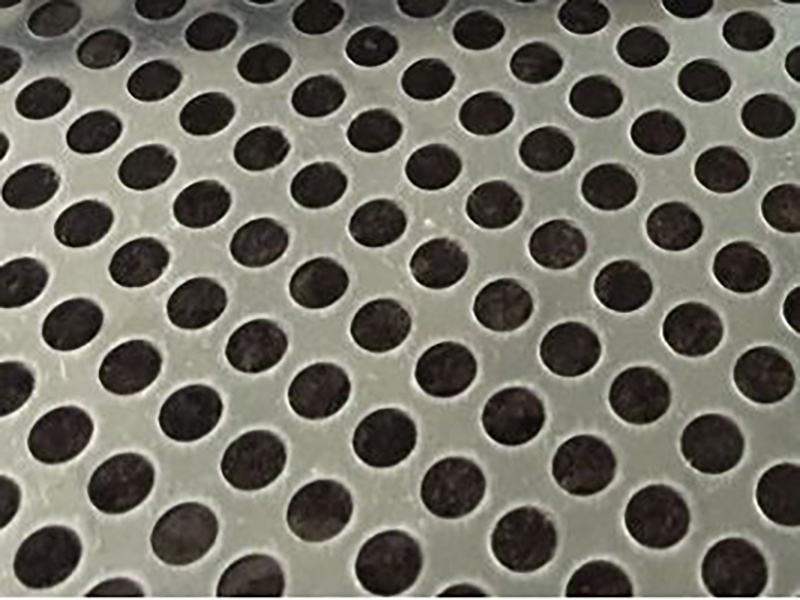

Round hole perforated sheet
Perforated Plate Screen
Perforated plates are made from high grade steel plate through drawing or punching processes.
If you need customized wire mesh products, Contact US !
Products Category
Tag list
- 产品描述
-
Product Introduction
Perforated plates are made from high grade steel plate through drawing or punching processes. The perforated plates feature robust structures, impact resistance and deformation-free performances. The perforated plate can filter materials precisely and its uniform meshes allow materials to be filtered smoothly. The mesh of the perforated plate also can be carved into different shapes, such as rectangle, square, diamond, circle, hexagon, cross, triangle, ellipse, stretched circle and irregular shapes.
The shape and dimension of the perforated plate screen is determined by your demands.
● Perforated plate screen thickness: 0.2mm – 1mm
● Aperture: 0.8mm – 1mm
● Plate screen form: roll
● Plate screen length: 20m
● Perforated plate screen thickness: >1mm
● Aperture: 0.8 mm – 100 mm
● Plate screen form: plate
● Plate screen length and width: ≤3m*5m
Applications
● Chemical machinery
● Pharmaceutical machinery
● Food and beverage machinery
● Tobacco machinery
● Harvester
● Dry-cleaning machinery
● Ironing table
● Muffling machinery
● Refrigeration machinery
● Central air-conditioning
● Speaker
● Handicraft machinery
● Paper machinery
● Hydraulic accessories
● Filtering machinery
Optional Shapes

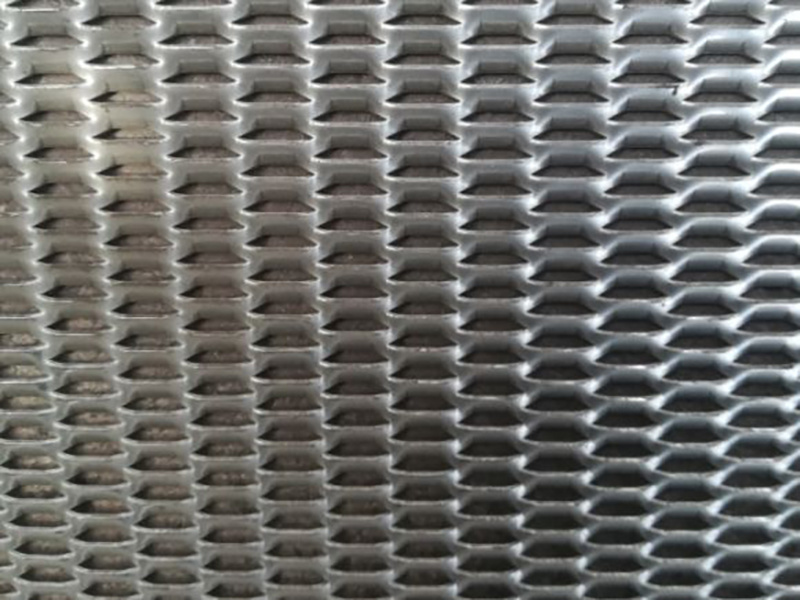

Irregular hole perforated metal panel

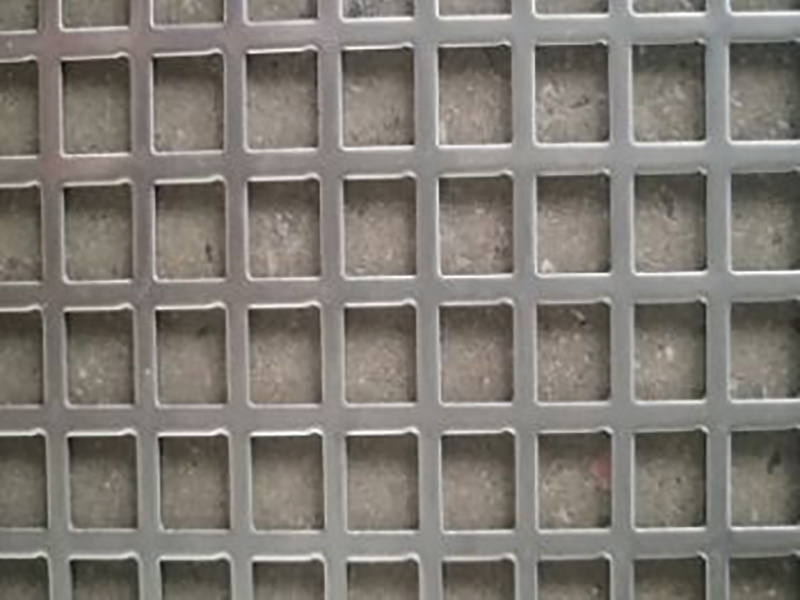

Square hole perforated metal plate
Opening Area Calculation
Our perforated plate screens can be customized based on your demands.
Example Specifications
● Mesh shape: round
● Application: powder mill grinder
R T Opening Area Plate Thickness 1 1.5 2 2.5 3 2 3 40 ✓ ✓ ✓ 25 35 46 ✓ ✓ ✓ ✓ 3 4 51 ✓ ✓ ✓ ✓ ✓ 35 4.5 55 ✓ ✓ ✓ ✓ 4 5.5 48 ✓ ✓ ✓ ✓ 45 6 51 ✓ ✓ ✓ ✓ 5 6.5 54 ✓ ✓ ✓ ✓ 6 75 58 ✓ ✓ ✓ 7 10 44 ✓ 18 11 48 ✓ ● Mesh shape: square
C U Opening Area Plate Thickness 0.8 1 1.5 2 1 3 5 36 ✓ ✓ 5 7.5 44 ✓ ✓ ✓ 6 8 29 ✓ ✓ ✓ 8 11 53 ✓ ✓ ✓ ✓ 10 12 69 ✓ ✓ 10 13 59 ✓ ✓ ✓ 10 16 44 ✓ ✓ ✓ ✓ 10 20 25 ✓ ✓ ✓ 15 20 56 ✓ ✓ ✓ ✓ 15 30 25 ✓ ✓ 20 25 64 ✓ ✓ ✓ ✓ 20 40 25 ✓ ✓ ✓ ✓ 22 44 25 ✓ ✓ ✓ ✓ 25 50 25 ✓ ✓ 30 36 73 ✓ ✓ ✓ ✓ 30 60. 25 ✓ ✓ ✓ ✓ 40 50 64 ✓ ✓ ✓ 40 80 25 ✓ ✓ ✓ 50 100 25 ✓ ✓ ✓
