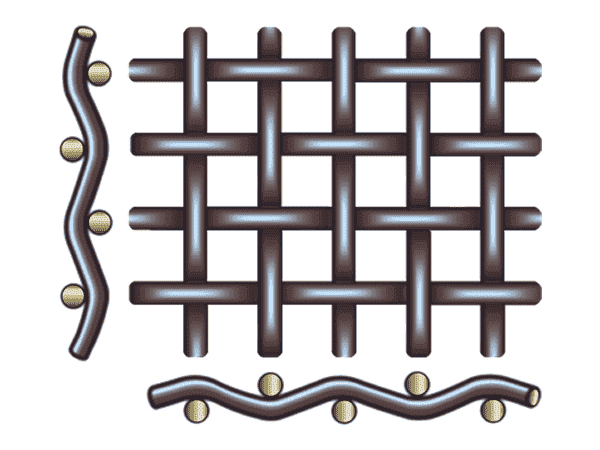

Double Crimp
65MN Mining Screen
65mn Crimped Wire Mesh is one of the most commonly used mining screens in mining, mineral processing, quarrying and aggregating industries.
If you need customized wire mesh products, Contact US !
Products Category
Tag list
- 产品描述
-
Product Introduction
Mining Screen, also named stone crusher screen Vibrating Sieving Screen Mesh, Crusher Sieving Screen Mesh. Mining Screen Mesh is usually made of 65MN wires of the same diameter that are crimped to form precise square openings and achieve maximum rigidity. Its high tensile strength, excellent vibration resistance and long service life make it obtain accurate screening results and services at best price, so that 65MN crimped wire mesh is a perfect choice stone crusher screen and mining screens.
Material Characteristics
65mn Crimped Wire Mesh is one of the most commonly used mining screens in mining, mineral processing, quarrying and aggregating industries. Comparing with carbon steel,45#,50#,55#,60#,70#,72A material grade, 65mn Material have the highest Manganese content and high carbon, which let is have High Wear resistance and Tensile strength. Stainless steel is also fine material, but price is too expensive for batch quantity uses. So that 65mn crimped wire mesh is a great screens for mining, quarrying, vibrating industry.
Table 1: 65MN Material Chemical Composition (%) Material C Si Mn Cr Ni Cu 65Mn steel
Example: 6.5mm0.62-0.70 0.17-0.37 0.90-1.20 ≤0.25 ≤0.30 ≤0.25 0.66 0.25 0.98 0.04 0.01 0.03 Weaving types and Edge types

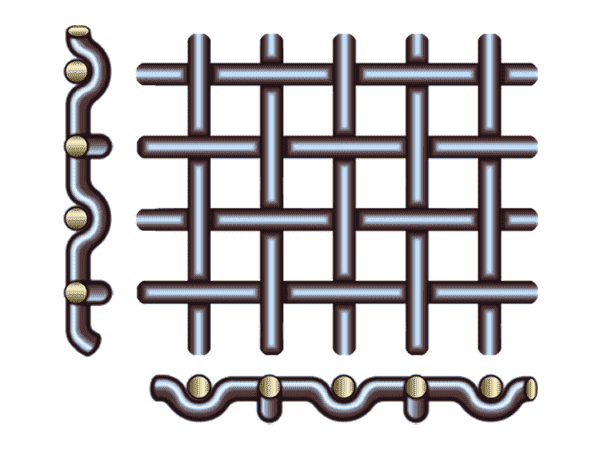

Flat Top

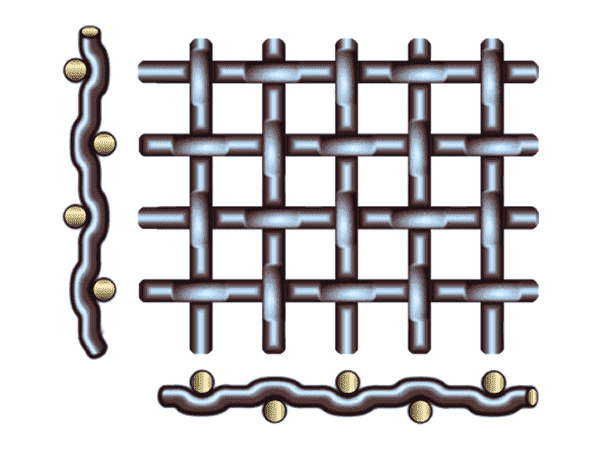

Lock Crimp

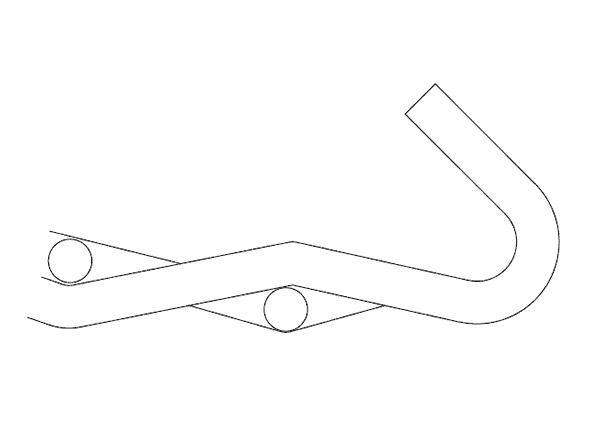

Plain hooked

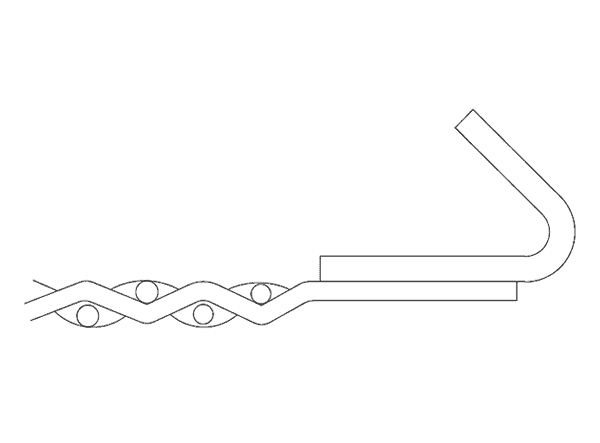

Reinforced shroud

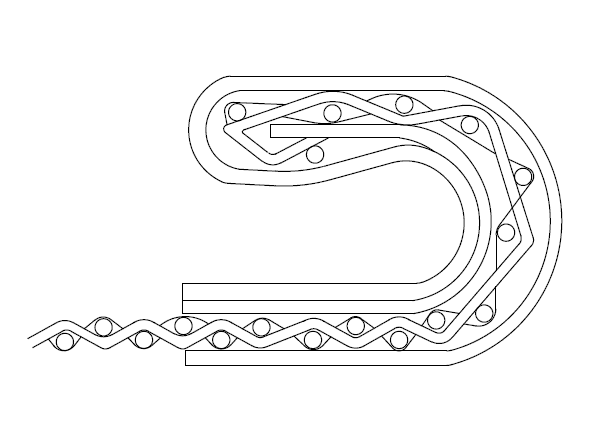

Double folded reinforced shroud

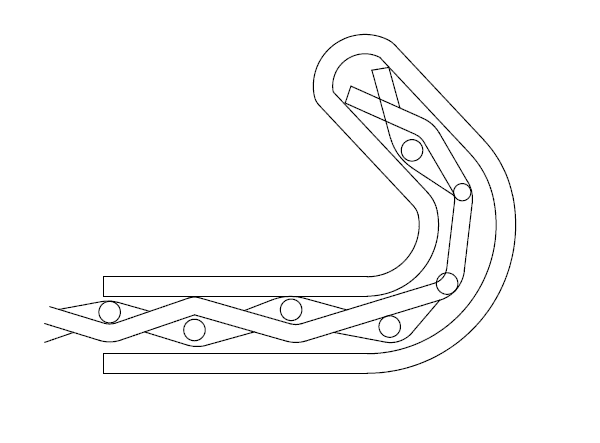

End tension reinforced shroud

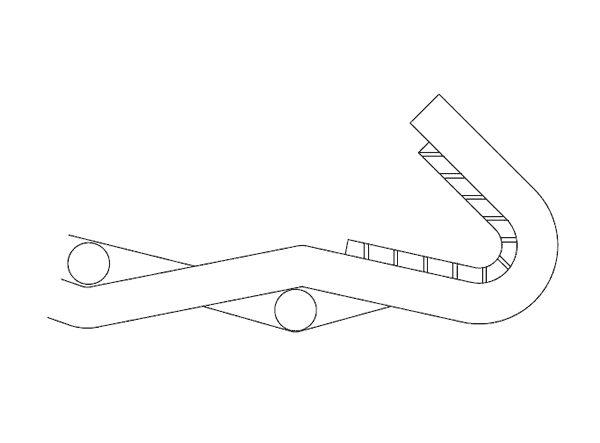

Inside reinforced formed
Welded bent plate
Specification Data
● Material: 65Mn Steel
● Wire diameter: 0.5-12.7mm
● Weaving type: Double crimped, Flat Top Crimped, Lock crimped Intermediate Crimped(notes: Intermediate Crimped is not recommend for Mining Screen Usage)
● Aperture/opening: 1.0mm-150mm
● Size: in sheet or in roll, width up to 6meter, length up to 100meters.
● General sheet size: 1200mmx1500mm, 1500mmx2000mm, 1500mmX2470mm, 1600mmX3100mm, 1600mmx2550mm, 1630mmX2550mm, 1750mmx4500mm1, 850mmx2070mm, 2000mmx3000mm, 2030mmX2050mm, 2070mmx2470mm.
● Surface finishing: Mill finish, Anti-rust oil spraying, PVC coatingTable 2: 65MN Square Holes Crimped Wire Mesh Specification Item# Mesh Aperture Wire Dia. Item# Mesh Aperture Wire Dia. Item# Mesh Aperture Wire Dia. 1 1.0mm 0.6mm 0.7mm 0.8mm 16 12.5mm 4mm 5mm 6mm 31 28.0mm 6mm,7mm,8mm 2 1.5mm 0.9mm 0.8mm 1mm 17 13.0mm 4mm 5mm 6mm 31 30.0mm 6mm 7mm 8mm 3 1.6mm 1.2mm 1.3mm 1.4mm 18 14.0mm 4mm 5mm 7mm 32 32.0mm 6mm 7mm 8mm 4 2.0mm 1.5mm 1.6mm 1.8mm 19 15.0mm 4mm 5mm 7mm 33 35.0mm 6mm 7mm 8mm 5 3.0mm 1.8mm 1.9mm 2mm 20 16.0mm 5mm 6mm 7mm 34 38.0mm 6mm 7mm 8mm 6 4.0mm 2mm 2.5mm 3mm 21 17.0mm 5mm 6mm 7mm 35 40.0mm 6mm 7mm 8mm 7 5.0mm 2mm 2.5mm 3mm 22 18.0mm 5mm 7mm 8mm 36 45.0mm 7mm 9mm 10mm 8 6.0mm 2.5mm 3mm 4mm 23 19.0mm 5mm 7mm 8mm 37 50.0mm 8mm 9mm 10mm 9 7.0mm 2.5mm 3mm 4mm 24 20.0mm 5mm 7mm 8mm 38 55.0mm 8mm 9mm 10mm 10 8.0mm 3mm 4mm 5mm 25 21.0mm 6mm 7mm 8mm 39 60.0mm 10mm 11.2mm 12.7mm 11 9.0mm 3mm 4mm 5mm 26 22.0mm 6mm 7mm 8mm 40 65.0mm 10mm 11.2mm 12.7mm 12 9.5mm 3mm 4mm 5mm 27 23.0mm 6mm 7mm 8mm 41 75.0mm 10mm 11.2mm 12.7mm 13 10.0mm 3mm 4mm 5mm 28 24.0mm 6mm 7mm 8mm 42 80.0mm 10mm 11.2mm 12.7mm 14 11.0mm 3mm 4mm 5mm 29 25.0mm 6mm 7mm 8mm 43 90.0mm 10mm 11.2mm 12.7mm 15 12.0mm 4mm 5mm 6mm 30 26.0mm 6mm 7mm 8mm 44 100.0mm 10mm 11.2mm 12.7mm Benefits of 65MN Mining Screen
● Excellent wear resistance, sturdy mesh construction, Longer functional life.
● Flat top screens, double crimp screens and lock crimp screens are available
● 65MN Mining Screen is pre-crimped wire cloth that is consisted of accurate openings and is woven much tighter than the normal weave.
● And the 65MN Mining Screen made by JTD is promised accurate dimensions and mesh aperture, corrosion resistant surface finish and black &bright surface.
Applications
65MN crimped wire mesh is usually ideal for vibrating screens and many other applications where sizing becomes significant.
There are many great usages such as:
Mining Industry:
● Used as screening materials for ore classification and separation
● Used as protective barriers and nets for mines and ore crushers
Construction & Infrastructure:
● Used as slope protection nets in construction projects such as highways, railways, and dams
● Used as mesh reinforcement and reinforcing meshes in foundation and infrastructure engineering
Environmental Protection & Water Treatment:
● Used as filtration screens for industrial wastewater and sewage treatment equipment
● Used as cover nets and filtration nets in landfills
Agriculture & Horticulture:
● Used as protective nets for greenhouses and farmland fences
● Used as support nets and decorative nets for horticultural plants
Industrial Filtration & Separation:
● Used for filtration and separation in industries such as chemical, metallurgy, and food
● Used as protective nets and filtration screens in mechanical equipment
Transportation:
● Used as separation meshes and decorative meshes for cars and trucks
● Used as safety protection nets in subways and train stations
Power & Telecommunications:
● Used as protective and separation nets for power equipment
● Used as decorative fences in telecommunications equipment roomsQuality Control
JTD is committed to delivering 65MN crimped wire mesh of superior quality. Our stringent quality control process ensures that you receive a reliable product that meets the highest standards.
