  • 产品描述

  • Product Introduction

    JTD's triangular pattern self-cleaning screens have triangle-shaped meshes, making them suitable to carry out fine screening at scale. Thanks to the shapes, the self-cleaning wire screens feature marvelous load capacity, while ensures a long service life, three times longer than that of common mining screens with square-shaped apertures. The triangular-pattern screens are applicable not only in mining industry, but also in hot-mix asphalt plants, making them absolutely a cost-effective choice for you.

    Features

    ● Self-cleaning screen with triangular mesh is suitable for very fine materials with high load bearing capacity;

    ● Triangular openings formed by alternating straight and crimped wires for better impact absorption;

    ● Rubber or polyurethane cross bands are optional to strengthen the screening surface and vibration stability;

    ● Can last up to three times longer than common screens;

    ● Especially suitable for hot-mix asphalt plants;

    ● Excellent performance when accurate sizing is required;

    ● Opening: 5/64 inch – 7/8 inch;

    Specifications

    Aperture Width (mm)Wire Diameter(mm)Wire Diameter (inch)Weight/m2Opening AreaMaterial
    2.001,20 - 1,603/64” - 1/16”4,3 - 6,343 - 36AR/AISI 304/AISI 316
    2.501,20 - 2,003/64” - 5/64”3,8 - 8,049 - 37AR/AISI 304/AISI 316
    3.001,20 - 2,003/64” - 5/64”3,5 - 7,654 - 38AR/AISI 304/AISI 316
    3.501,20 - 1,603/64” - 1/16”3,4 - 5,456 - 47AR/AISI 304/AISI 316
    4.001,20 - 2,503/64” - 0,0983,0 - 9,260 - 42AR/AISI 304/AISI 316
    4.501,50 - 2,500,059 - 0,0984,0 - 7,558 - 46AR/AISI 304/AISI 316
    5.001,50 - 2,800,059 -7/64”3,9 - 9,159 - 45AR/AISI 304/AISI 316
    5.501,50 - 2,500,059 - 0,0983,0 - 6,765 - 52AR/AISI 304/AISI 316
    6.001,50 - 3,150,059 -1/8”3,0 - 10,766 - 45AR/AISI 304/AISI 316
    6.302,50 - 2,800,098 -7/64”7,4 - 8,252 - 51AR/AISI 304/AISI 316
    6.502,00 - 2,505/64” - 0,0985,1 - 6,259 - 56AR/AISI 304/AISI 316
    7.002,00 - 3,155/64” -1/8”4,0 - 11,664 - 47AR/AISI 304/AISI 316
    7.502,00 - 2,505/64” - 0,0985.5060AR/AISI 304/AISI 316
    8.002,00 - 4,005/64” -5/32”4,4 - 10,965 - 50AR/AISI 304/AISI 316
    8.502,00 - 2,505/64” - 0,0985.1064AR/AISI 304/AISI 316
    9.002,00 - 3,155/64” -1/8”4,8 - 7,765 - 58AR/AISI 304/AISI 316
    9.502,50 - 2,800,098 -7/64”6.1062AR/AISI 304/AISI 316
    10.002,00 - 3,155/64” -1/8”4,7 - 7,866 - 60AR/AISI 304/AISI 316
    11.002,80 - 3,157/64” -1/8”6.7064AR/AISI 304/AISI 316
    11.502,50 - 3,150,098 -1/8”5.966.0AR/AISI 304/AISI 316
    12.002,50 - 4,000,098 -5/32”4,0 - 9,072 - 60AR/AISI 304/AISI 316
    12.502,50 - 4,000,098 -5/32”5,6 - 8,368 - 62AR/AISI 304/AISI 316
    13.002,00 - 3,155/64” -1/8”3,7 - 6,773 - 65AR/AISI 304/AISI 316
    14.002,80 - 4,007/64” -5/32”5,2 - 7,770 - 65AR/AISI 304/AISI 316
    15.002,80 - 4,007/64” -5/32”4,4 - 7,373 - 67AR/AISI 304/AISI 316
    16.003,00 - 4,000,118 -5/32”5,9 - 8,670 - 65AR/AISI 304/AISI 316
    17.003,00 - 4,000,118 -5/32”6.7069AR/AISI 304/AISI 316
    18.003,00 - 4,000,118 -5/32”6,4 - 8,071 - 68AR/AISI 304/AISI 316
    19.003,00 - 4,000,118 -5/32”6.2072AR/AISI 304/AISI 316
    20.003,00 - 4,000,118 -5/32”3,2 - 7,579 - 70AR/AISI 304/AISI 316
    21.003,00 - 4,000,118 -5/32”5.7074AR/AISI 304/AISI 316
    22.003,00 - 4,000,118 -5/32”5,6 - 8,274 - 70AR/AISI 304/AISI 316
    23.003,00 - 4,000,118 -5/32”5.7075AR/AISI 304/AISI 316
    24.003,00 - 4,000,118 -5/32”5,7 - 7,174 - 71AR/AISI 304/AISI 316
    25.003,00 - 4,000,118 -5/32”5,5 - 6,675 - 73AR/AISI 304/AISI 316
    26.004,00 - 4,005/32” - 5/32””6.5074AR/AISI 304/AISI 316
    30.004,00 - 5,005/32” - 13/64”5,4 - 8,078 - 74AR/AISI 304/AISI 316

    ● AISI 304L / EN 1.4307: Austenitic stainless steel with low carbon content.

    ● AISI 304 / EN 1.4301: High resistance austenitic stainless steel.

    ● AISI 316 / EN 1.4401: Austenitic stainless steel with molybdenum strengthen corrosion resistance.

    ● AR / EN 10270: Wear resistant steel with a high content of carbon and manganese.

    ● Std.: Standard wires/apertures.

    ● NUBA Screening Media, at the customer’s request can provide a Quality Inspection Certificate (compliant with EN 10204.3.1.B) showing the chemical and mechanical properties of the materials. Other Aperture/wire combinations and materials such as galvanized steel etc. are available at customer’s request.

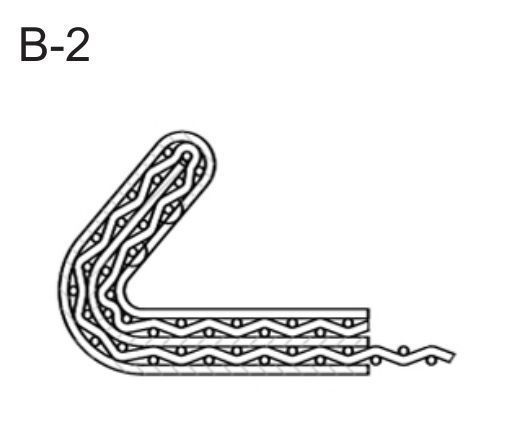

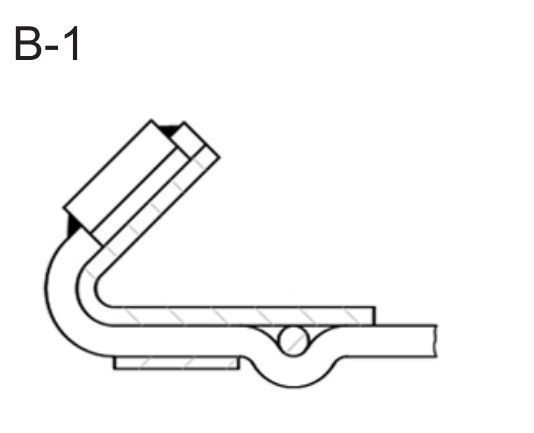

    Self-cleaning screen hook strip styles
