Product Introduction
Stainless steel wire mesh can be welding type, pre-crimped type, here, we are introducing our weaving stainless steel wire mesh for you.
Manufacture stainless steel wire cloth/mesh in all meshes from larger opening to fine mesh filter cloth, with various materials for your applications required. And, we are happy to supply small or larger quantity in roll stock, cut-to-size, slit rolls, aggregate screens, discs, circles, heavy woven mesh or custom weaves. Most standard specification are in stock.
OEM,ODM and customized orders always the best price and delivery in time.
What Is Stainless Steel Wire Mesh Or Stainless Steel Wire Cloth?
Here the stainless steel wire mesh is an industrial product made from interlocking metal wires, also named stainless steel woven cloth, stainless steel woven mesh, stainless steel wire netting.
Wire mesh is sometimes also referred to as wire cloth, though they are not the same product in the strictest sense. Technically, wire cloth refers to those interlocking metal wire products that have been welded together in rolls on a loom, while wire mesh refers to those wires that have been sintered or welded together with evenly spaced, regular openings.
Usually, during business communication, stainless steel wire mesh and stainless steel wire cloth is the same products, that means the metal wire netting be made by stainless steel wires.
Wire Materials
Stainless steels of 304, 304L, 316, 316L, 321, 310, 310S
Duplex stainless steel 2205, super duplex stainless steel 2507
Other metal alloy 904L, C22,C276, Monel 400, etc.
Mesh size: 1–2800 mesh
Wire diameter: ≥ 0.02 mm
Width: Some specifications can reach to 6 m

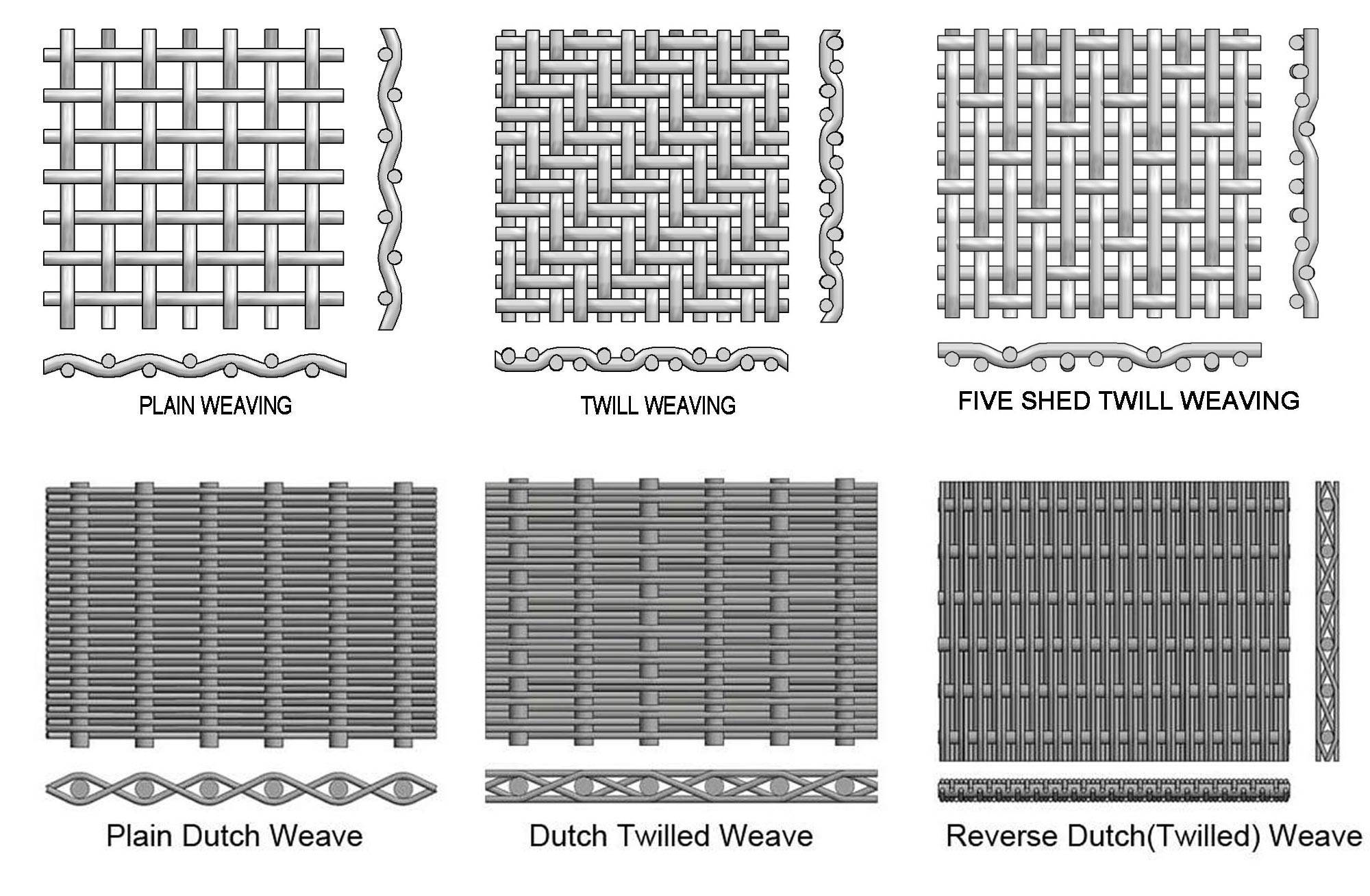

Typical Weaving Patterns
Plain Weave, Twill Weave, Plain Dutch weave, Twilled Dutch Weave, Reverse Dutch Weave, Five-Heddle Weave.
General Specification
Wire Materials
● Stainless steels of 304, 304L, 316, 316L, 321, 310, 310S
● Duplex stainless steel 2205, super duplex stainless steel 2507
● Other metal alloy 904L, C22,C276, Monel 400, etc.
Mesh size: 1–2800 mesh
Wire diameter: ≥ 0.02 mm
Width: Some specifications can reach to 6m
Typical Weaving Patterns
Plain Weave, Twill Weave, Plain Dutch weave, Twilled Dutch Weave, Reverse Dutch Weave, Five-Heddle Weave.
General Industrial Uses
Stainless steel wire mesh, with its excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc.
Products Standards
ISO9001:2015 certified company, and all of our stainless steel woven wire cloth comply with international quality standards. All of our metal mesh are inspected to ensure compliance.
ASTM A580/A580M-18 Standard Specification for Stainless Steel Wire
ISO 9044:1999 Industrial woven wire cloth — Technical requirements and testing
ASTM E2016 –15 Standard Specification for Industrial Woven Wire Cloth
ASTM E2814 –11 Standard Guide for Industrial Woven Wire Filter Cloth
Plain Weave & Twill Plain Weave Stainless Steel Wire Mesh
Plain Weave and Twill Plain Weave Stainless Steel Wire Mesh is also called square hole wire cloth, mesh rang from 1mesh to 635mesh, wire diameter from 0.02mm to 4mm. Most of the following common used specification are in stock, welcome your enquiry.
Table 1: Stainless Steel Wire Plain Weave& Twill Weave Specification Mesh Wire Dia. (mm) Opening (mm) Material (AISI) 1 × 1 2.000 23.370 304 or 316 2 × 2 1.600 11.100 304 or 316 3 × 3 1.370 7.090 304 or 316 4 × 4 1.600 4.750 304 or 316 4 × 4 1.190 5.160 304 or 316 5 × 5 1.000 4.040 304 or 316 6 × 6 0.890 3.350 304 or 316 8 × 8 0.710 2.460 304 or 316 10 × 10 0.640 1.910 304 or 316 12 × 12 0.580 1.520 304 or 316 12 × 12 0.500 1.600 304 or 316 14 × 14 0.230 1.220 304 or 316 14 × 14 0.500 1.300 304 or 316 16 × 16 0.450 1.130 304 or 316 18 × 18 0.430 0.980 304 or 316 20 × 20 0.400 0.870 304 or 316 24 × 24 0.350 0.700 304 or 316 30 × 30 0.330 0.520 304 or 316 30 × 30 0.300 0.540 304 or 316 30 × 30 0.230 0.620 304 or 316 35 × 35 0.280 0.450 304 or 316 40 × 40 0.250 0.380 304 or 316 40 × 40 0.230 0.400 304 or 316 50 × 50 0.230 0.280 304 or 316 50 × 50 0.200 0.310 304 or 316 60 × 60 0.180 0.230 304 or 316 60 × 60 0.180 0.250 304 or 316 70 × 70 0.165 0.200 304 or 316 70 × 70 0.120 0.240 304 or 316 80 × 80 0.165 0.200 304 or 316 80 × 80 0.140 0.150 304 or 316 90 × 90 0.120 0.160 304 or 316 100 × 100 0.110 0.140 304 or 316 100 × 100 0.100 0.150 304 or 316 100 × 100 0.090 0.170 304 or 316 120 × 120 0.090 0.120 304 or 316 150 × 150 0.063 0.110 304 or 316 180 × 180 0.053 0.090 304 or 316 200 × 200 0.053 0.070 304 or 316 250 × 250 0.040 0.063 316 300 × 300 0.040 0.044 316 325 × 325 0.035 0.043 316L 350 × 350 0.030 0.042 316L 400 × 400 0.030 0.033 316L 450 × 450 0.028 0.028 316L 500 × 500 0.025 0.026 316L 635 × 635 0.020 0.020 316L Notes: All tde above is in stock, and special types can be customized made. Plain Dutch Weave Wire Mesh
Plain Dutch Weave can accommodate high flowrates with a relatively low pressure drop. They are woven with each warp and weft wire passing over and under one wire. The weft wires are smaller in diameter than the warp wires and are drawn up close together, creating a dense filtration weave.
Table 2: Plain Dutch Weave Filter Cloth Specification Mesh Wire Dia. (MM) Normal Opening (μm) Material (AISI) 7 × 44 0.71× 0.63 315 304 or 316 8 × 60 0.63 × 0.45 300 304 or 316 14 × 88 0.50 × 0.33 200 304, 316 or steel 22 × 64 0.58 × 0.40 280 304, 316 or steel 24 × 110 0.36 × 0.25 150 304, 316 or steel 30 × 150 0.23 × 0.18 100 304, 316 or steel 40 × 200 0.18 × 0.13 80 304 or 316 50 × 250 0.14 × 0.11 60 304 or 316 80 × 400 0.10 × 0.065 40 304 or 316 78 × 700 0.11 × 0.08 30 304 or 316 Twill Dutch Weave Wire Mesh
The term "Twill" indicates the warp and weft wires pass alternately over two and under two wires. The term "Dutch" refers to the use of a heavier warp wire in conjunction with a lighter weft wire. In a Twill Dutch Weave the weft wires are drawn up so tightly that there is always a weft wire above and below the warp wires, creating a weave with the warp wires completely covered. The flow-pass geometry is extremely tortuous, allowing reasonable flow rates while insuring excellent particle size retention.
Table 3: Twill Dutch Weave Filter Cloth Specification Mesh Wire Dia. (mm) Normal Opening (μm) Material (AISI) 80 × 700 0.110 × 0.080 30 304, 316, 316L 165 × 800 0.070 × 0.050 20 304, 316, 316L 165 × 1400 0.063 × 0.040 15 304, 316, 316L 200 × 600 0.050 × 0.032 10 304, 316, 316L 200 × 1400 0.050 × 0.032 10 304, 316, 316L 250 × 1600 0.050 × 0.032 8 304, 316, 316L 280 × 2200 0.050 × 0.032 7 304, 316, 316L 300 × 2100 0.036 × 0.025 6 316L 325 × 2300 0.035 × 0.025 4 316L 400 × 2800 0.030 × 0.018 3 316L Reverse Dutch Weave Wire Cloth
Reverse Dutch Weave Wire Cloth is one of special weave wire cloth used in the filtration filed of plastic industry, chemical industry, etc. Comparing with the normal Plain Dutch weave mesh, the coarser wire in the weft direction and the finer wire in the warp direction, this weave can supply better filtration rate.
Table 4: Reverse Dutch Weave Wire Cloth Specification Mesh Wire Dia. (mm) Material (AISI) 75 × 15 0.45 × 0.50 304, 316, 316L 120 × 15 0.35 × 0.50 304, 316, 316L 132 × 17 0.32 × 0.45 304, 316, 316L 150 × 18 0.30 × 0.45 304, 316, 316L 152 × 24 0.28 × 0.40 304, 316, 316L 160 × 18 0.27 × 0.45 304, 316, 316L 180 × 18 0.26 × 0.45 304, 316, 316L 200 × 40 0.17 × 0.27 304, 316, 316L 260 × 40 0.15 × 0.27 304, 316, 316L 300 × 40 0.14 × 0.25 304, 316, 316L
