Product Introduction

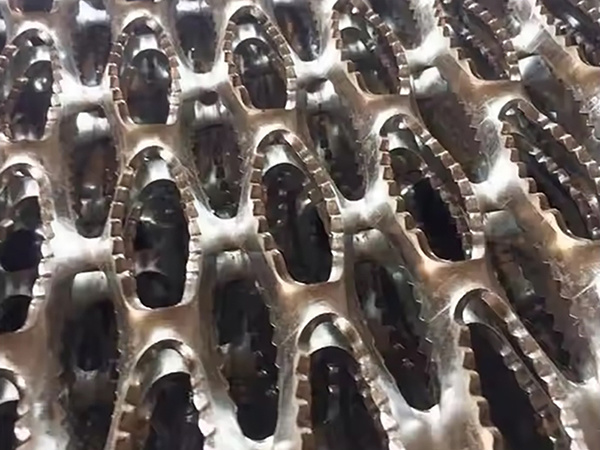

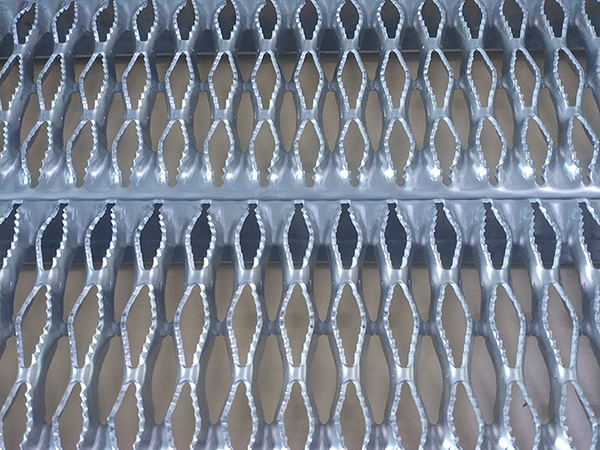

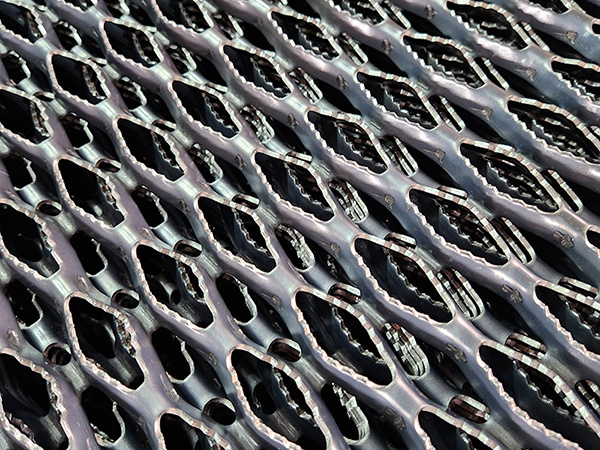

Grip strut plank safety grating also named diamond grip plank grading, grip strut safety grating. Our grip strut perforated plank grating has serrated surface, provide a safer surface than many other grating products. It helps eliminate costly accidents, which reduces insurance costs and lost production. The open diamond pattern allows most debris and dirt to drain. Grip Strut Plank Grating is available in serrated and smooth diamond patterns, create non-slip walkways and stair treads.
Technical Data
● Material Options:
Stainless Steel
Hot Rolled Pickled and Oiled (HRPO) carbon steel
Aluminum Alloy 5052 (support anodizing)
Pre-galvanized Steel (support surface painting)
● Slip resistance: complies with federal specification RR-G-1602D standards.
● Available Patterns: standard serrated, grip strut stair tread, heavy duty serrated, grip strut ladder rungs, customized design
Grip Strut Plank Grating
● Material Gauge: 9 ga, 10 ga, 11 ga, 12 ga, and 13 ga
● Channel Width: 4-3/4" (2-Diamond), 7" (3-Diamond), 9-1/2" (4-Diamond), 11-3/4" (5-Diamond), 18-3/4" (8-Diamond), 24" (10-Diamond)
● Channel Depth: 1-1/2", 2", 2-1/2, 3" or customized
● Channel Span Length: 6', 8', 10', 12', 24' or customized
Heavy Duty Grip Strut Plank Grating
● Material Gauge: 9 ga, 10 ga
● Walkway Width: 24" (6-Diamond), 30" (8-Diamond), 36" (10-Diamond)
● Walkway Length: 6', 8', 10', 12', 24' or customized
Grip Strut Stair Tread
● Material Gauge: 11 ga, 12 ga, and 13 ga
● Channel Height: 1-1/2", 2"
● Channel Width: 4-3/4" (2-Diamond), 7" (3-Diamond), 9-1/2" (4-Diamond), 11-3/4" (5-Diamond)
● Length: 2', 2.5', 3', 4' or customized
● Intermediate Stringer: it is recommended for spans over 4 feet.
● End Types: bending 4 sides or welding carrier plates on ends.
Grip Strut Ladder Rungs
● Material Gauge: 11 ga, 12 ga, and 13 ga
● Width:
Standard diamond: 2-1/2"
Reverse diamond: 1-5/8"● Height:
Standard diamond: 1-1/8"
Reverse diamond: 1-5/8"● Length: 3', 4', 6' or customized
● Type: standard & reverse diamond (vertical opening & parallel opening to the length).
Application

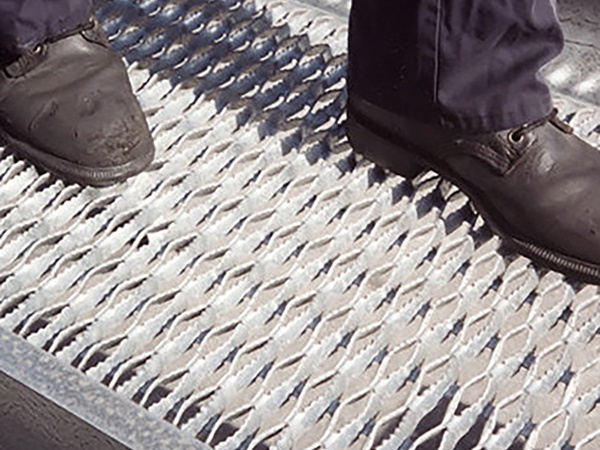

Grip Strut Plank Grating is ideally suited for all walking/working surfaces where mud, ice, snow, grease, oil and detergents create slippery or hazardous conditions. The serrated surface is designed in an open diamond pattern. This allows drainage of fluids, mud, chips and other accident-causing debris. Wide applications examples:
● Conveyor walkways
● Switching platforms
● Mezzanine Flooring
● Rooftop Walkways
● Wet environments Walkways
● Anti-slip Stair Treads for ships
● Electrical substations walkways
● Brake Steps for container trailer
● Ladder Rungs for fieldwork workers
