Product Introduction
JTD manufactures its polyurethane screens with organic polymer materials, meaning that the polyurethane screens are resistant to abrasion, oil corrosion, aging and impact. Based on polyurethane, our screens feature great load capacity and their specifications can be customized based on your demands.
Features
● Thermosetting and thermoplasticity;
● Apertures: 0.3 mm – 100 mm;Application
● Tunneling industry;
● To be specific: separating water from sands, muds, stones, peddles and ores.

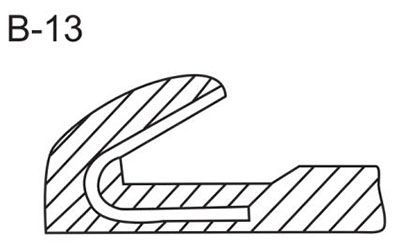

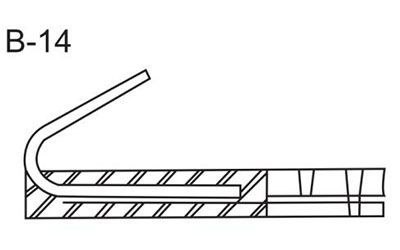

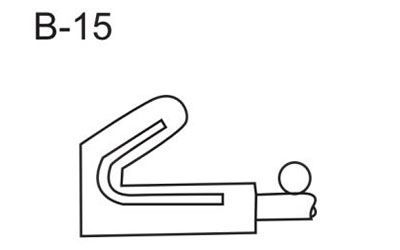

Optional Shapes
Production Procedures
● Prepare raw materials and put pre-polymers into an oven for heating;
● Manufacture preliminary metal screens, conduct abrasive blasting and adhesive coating;
● Clean molds and propel release agents on them;
● Place the metal screens in the molds and pour the pre-polymers on the screens.
● Carry out the curing and drying of the screens
Specifications
Square Mesh Rectangle Mesh Aperture Width Plate Thickness Tensioning Thickness Compression Thickness Aperture Plate Thickness Tensioning Thickness Compression Thickness 2.50 7 25 30 0,20x11,00 8 30 30 2.80 7 25 30 0,30x16,00 7 30 30 3.20 7 25 30 0,40x11,00 8 30 30 4.00 7 25 30 0,50x16,00 7 30 30 4.50 8 25 30 0,60x11,00 8 30 30 5.00 9 25 30 0,80x16,00 7 30 30 5.50 8 25 30 1,00x11,00 8 25 30 6.20 9 25 30 1,20x11,00 8 27 30 6.50 9 25 30 1,50x11,00 8 25 30 7.30 9 25 30 1,50x20,00 8 25 30 7.50 9 25 30 1,50x25,00 8 25 30 8.00 9 25 30 2,00x20,00 8 25 30 9.50 10 25 30 2,50x20,00 8 25 30 10.00 11 25 30 3,00x20,00 8 25 30 11.50 12 25 30 4,00x20,00 12 25 30 12.50 13 25 30 4,50x20,00 8 35 30 13.00 13 25 30 14.00 13 25 30 15.00 15 25 30 16.50 16 25 30 17.50 15 25 30 18.50 15 25 30 20.00 18 30 30 22.00 18 30 30 23.00 18 30 30 24.00 24 30 30 25.00 24 30 30 25.90 22 30 30 27.00 24 30 30 28.00 21 30 30 30.00 24 30 30 32.00 21 30 30 35.00 28 35 35 37.00 28 35 35 40.00 27 35 35 42.50 28 35 35 45.00 28 35 35 50.00 37 40 40* 55.00 40 40 40* 60.00 40 40 40* 65.00 40 40 40* 70.00 40 40 40* 75.00 40 40 40* 80.00 45 45 45* 85.00 45 45 45* 90.00 45 45 45* 95.00 45 45 45* 100.00 35 35 35 120.00 40 40 45* Hook Style
