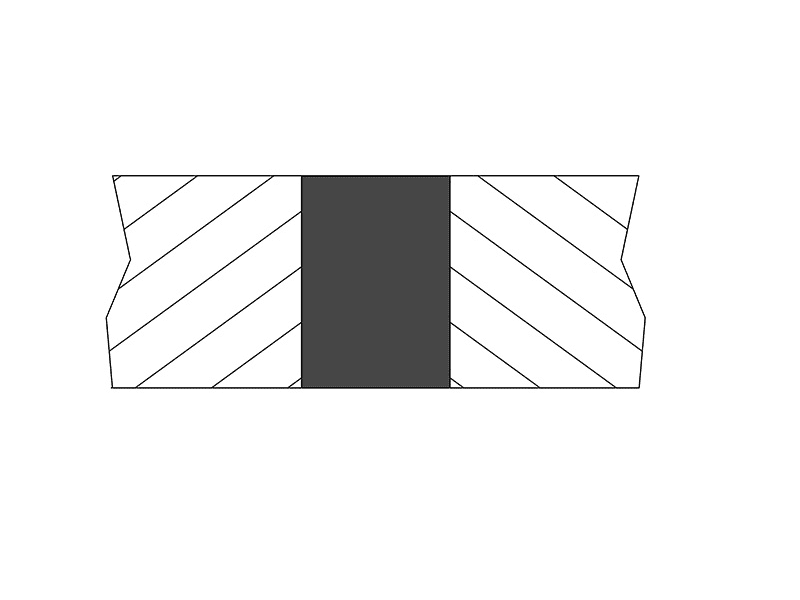

Cylindrical drilling holes
Drilling Perforated Metal Plate
Except for CNC punching plate, photo etching plates and laser cutting plates, metal plate also can be drilled into super perforated metal screen sheet for more stringent application requirements.
If you need customized wire mesh products, Contact US !
Products Category
Tag list
- 产品描述
-
Product Introduction
Except for CNC punching plate, photo etching plates and laser cutting plates, metal plate also can be drilled into super perforated metal screen sheet for more stringent application requirements. Generally, perforated metal screen sheet demands drilling process when the material plate is much thicker than the diameter of the perforation, as common CNC punching, etching laser cutting cannot handle it well.
After drilling and milling, we will satin-finish and wash the perforated screen, to guarantee perfectly clean holes and no burrs. Our different advanced drilling/milling equipment and various technologies cooperative partners for different applications and industries.
Technical Information
● Material Grade:
Austenitic stainless steel (e.g. 304, 316L,321, 310S, 904L)
Duplex Stainless Steel(e.g.S25073, S32750)
Hastelloy (e.g. Hastelloy C-276)
Titanium (e.g. Ta2)
Nickel Alloys (e.g. Monel 400)
Inconel alloy (e.g. Inconel 600, Inconel 625)
Other metal or metal alloy plates
● Hole diameter: 0.6–50 mm
● Thickness: up to 60 mm
● Workable size: up to 2 × 6 m
● Surface finish: mechanical polishing, pickling polishing, electrolytic polishing, sandblasting and etc.
● Application: tube plate, sieve tray;
Hole Pattern
● Cylindrical Holes: Application in hydra pulper sieve plate, rotary drum pulper sieve plate, sand washer sieve plate, vibrating screen sieve plate, centrifugal honey extractor sieve plate.
● Stepped Holes (also called Bicylindrical): Application in pressure sieve plate, fiber separator sieve plate, single screw press sieve plate, double screw press sieve plate.
● Cylindrical Conical Holes: Application in sugar pulp pressing, water filtration, paper mills pressing, processing of chemicals, separation process.
● Conical Holes: Application in pressure sieve plate, fiber separator sieve plate, single screw press sieve plate.● Counterbored Holes: Application in tube plate, sieve tray.

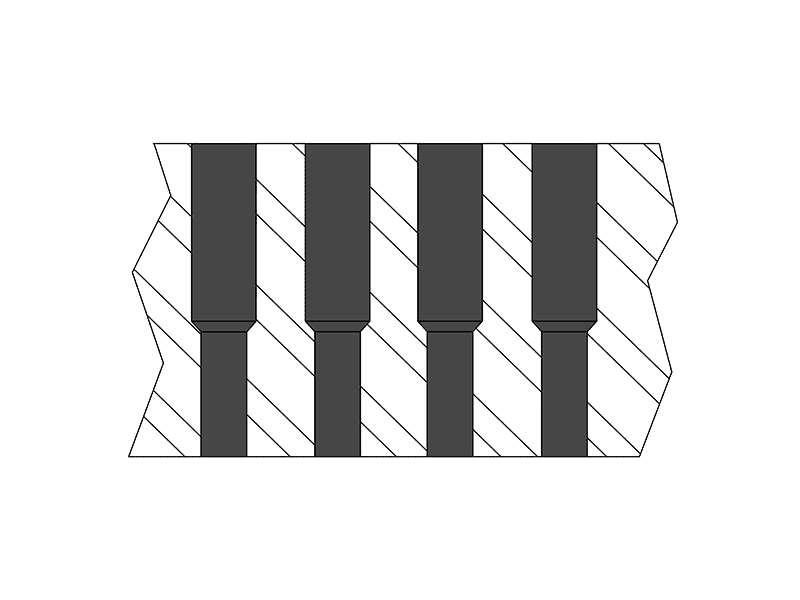

Stepped/ Bicylindrical drilling holes

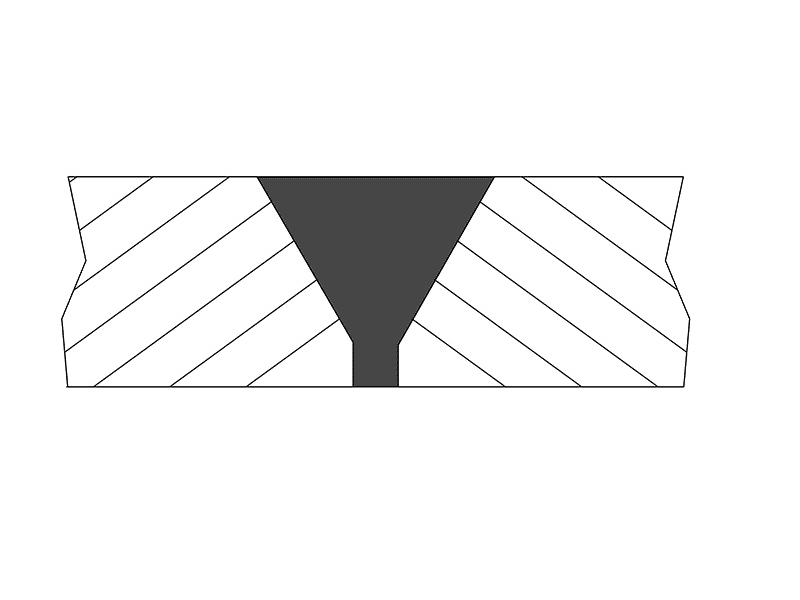

Cylindrica conical driling holes

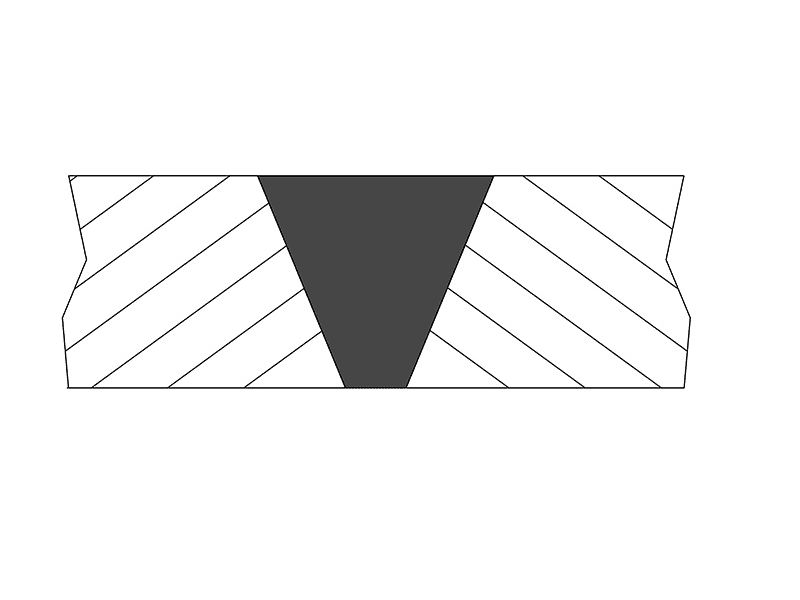

Conical/Taper drilling holes

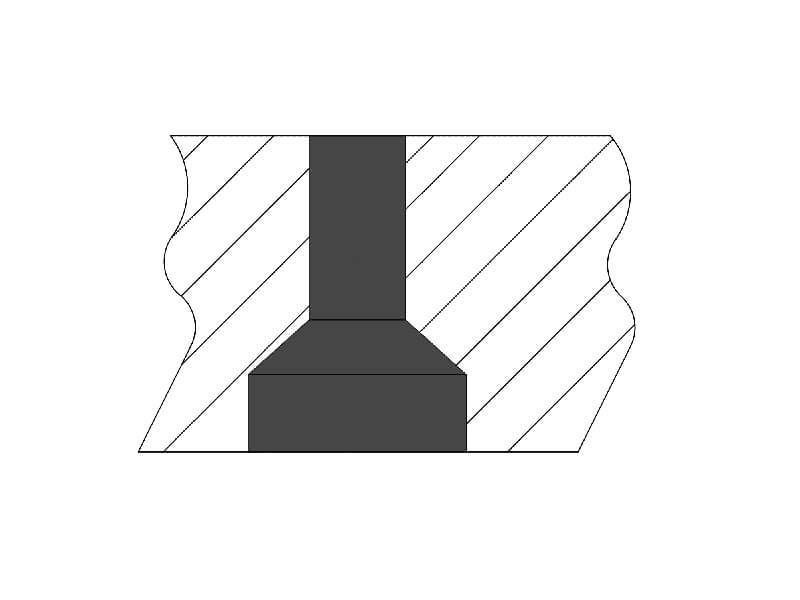

Counterbored milling holes
Advantages & Capabilities
● Advantages
Super high-ratio opening area
Significantly high-pressure resistance
Enhanced fabrication of forming, welding, bending
Greater durability, long life and significant cost savings
● Capabilities
Applications
Drilling Perforated Metal Screen Plate is more expensive and punching perforated metal plates, but as its super high-ratio perforation and high strength, it approval and preferred by many clients and applications such as instance, sieving, filtering, protecting or controlling an air flow or liquid flow.
● Pulp manufacturing industry. Drilling perforated metal screen plates can be used in hydraulic pulper screens, rotary pulper screens, pressure screens, etc.
● Food industry. Drilling perforated metal screen plates can be used in centrifugal honey extraction screens, rotary grinding screens, etc.
● Mining industry. Drilling perforated metal screen plates can be used in vibrating screens, sand washing screens, etc.
● Oil extraction industry. Drilling perforated metal screen plates can be used in shale shaker screens, etc.
● Chemical industry. Drilling perforated metal screen plates can be used in chemical columns, etc.
● Pharmaceutical industry. Drilling perforated metal screen plates can be used in screen plates for medicinal grinder, etc.
● Textile industry. Drilling perforated metal screen plates can be used in filter cloths needed for wastewater treatment in textile printing and dyeing.
Cases Display
Through client cases, you can learn our excellent product quality and process in-depth, and feel the quality of drilling perforated metal plate.
Quality Control
JTD is committed to delivering drilling perforated metal screen plate of superior quality. Our stringent quality control process ensures that you receive a reliable product that meets the highest standards.
