Product Introduction
Metal woven wire mesh is the most commonly used wire screen in the industry and features high accuracy of meshes. As one of the companies that establish China’s new standards on mining metal woven wire mesh, DUNPAI produces wire screens with better dimension tolerance than DIN47833 in Europe and ASTM 2016-15 in North America. Our woven wire meshes are established for an anti-abrasion performance and long service life.
Wire Mesh Openings and Wire Sizes

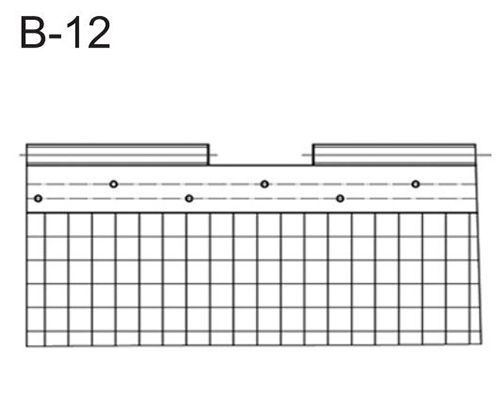

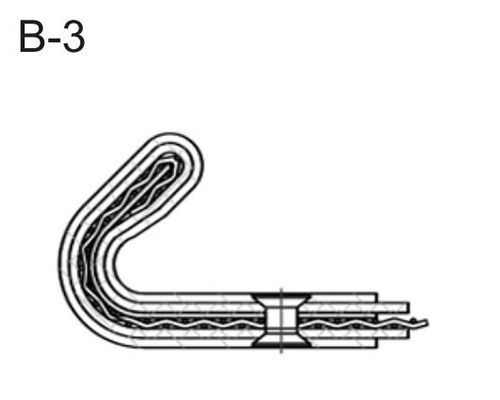

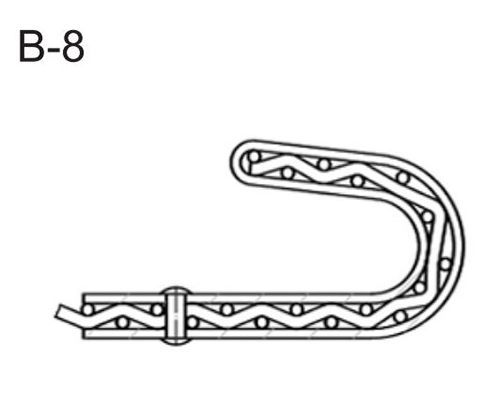

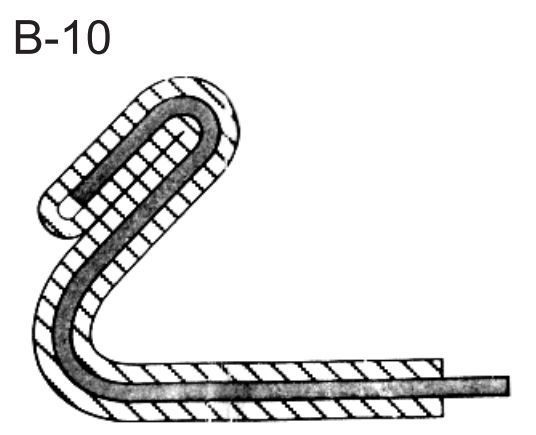

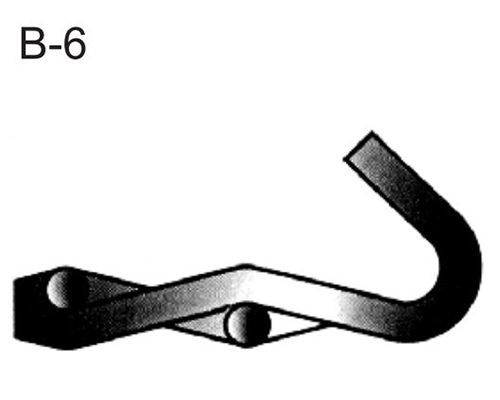

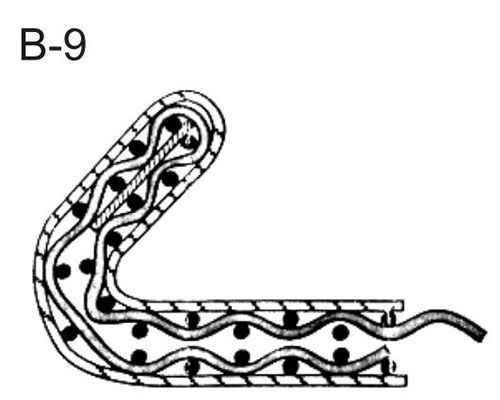

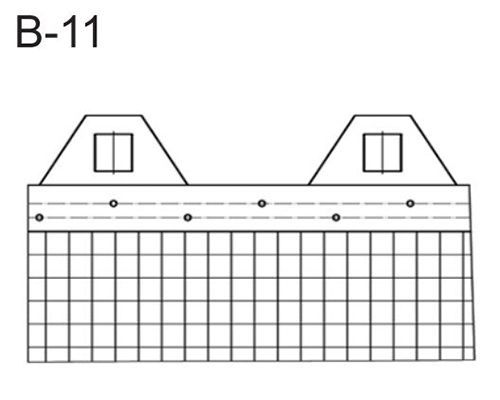

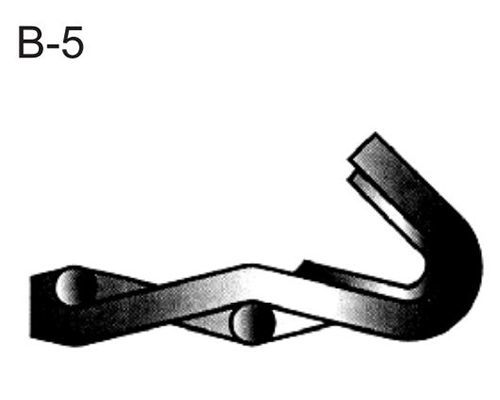

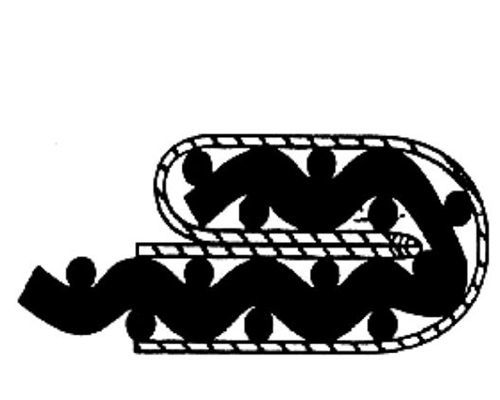

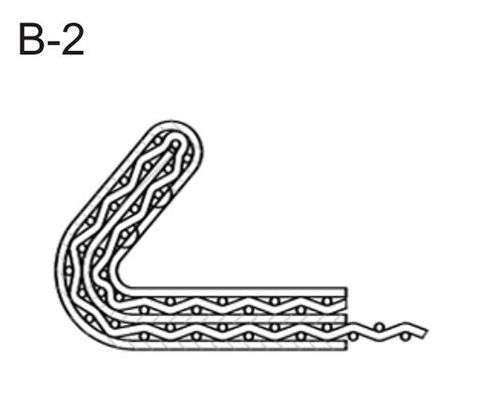

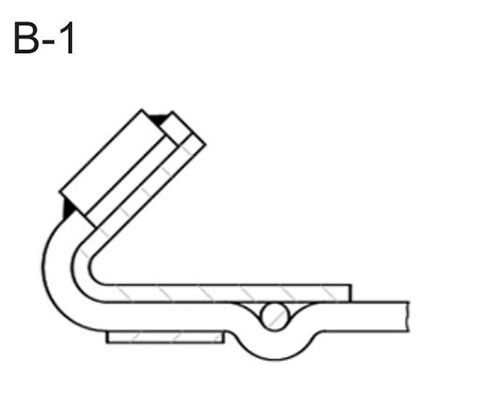

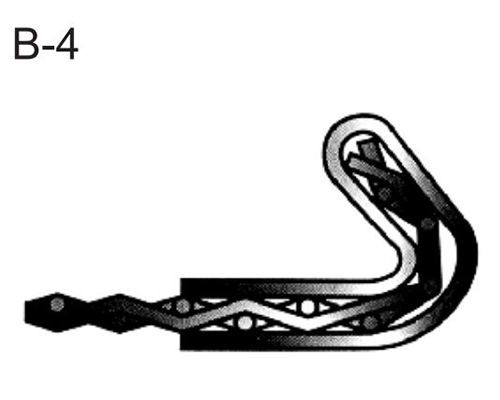

Lightweight Intermediate Heavy-duty Aperture Wire Diameter Opening Area Wire Diameter Opening Area Wire Diameter Opening Area 2 1.0 44 4 1.6 51 2.0 44 2.2 42 4.5 1.8 51 2.2 45 2.5 41 5 2.0 51 2.5 44 3.0 39 5.6 2.0 54 2.5 48 3.0 42 6 2.0 56 2.5 50 3.0 44 7.1 2.0 61 2.5 55 3.0 49 8 2.0 64 2.5 58 3.0 53 9 2.5 61 3.0 56 4.0 48 10 2.5 64 3.0 59 4.0 51 13 3.0 66 4.0 58 5.0 52 14 3.0 68 4.0 60 5.0 54 16 3.0 71 4.0 64 5.0 58 18 4.0 67 5.0 61 6.0 56 20 4.0 69 5.0 64 6.0 59 22 4.0 72 5.0 66 6.0 62 25 5.0 69 6.0 65 8.0 57 28 5.0 72 6.0 68 8.0 60 32 5.0 75 6.0 71 8.0 64 36 5.0 77 6.0 73 8.0 67 40 6.0 76 8.0 69 10.0 64 45 6.0 78 8.0 72 10.0 67 50 6.0 80 8.0 74 10.0 69 56 8.0 77 10.0 72 12.5 67 63 8.0 79 10.0 74 12.5 70 71 10.0 77 12.5 72 80 10.0 79 12.5 75 90 10.0 81 12.5 77 100 10.0 83 12.5 79 Our wire screen can be customized based on your demands Self-cleaning screen hook strip styles
